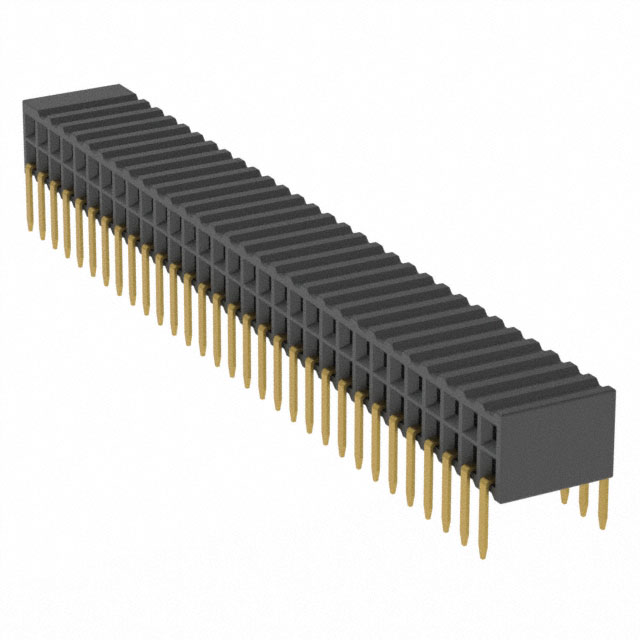

M50-3203145

M50-3203145 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 62P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3203145

• Description：CONN RCPT 62P 0.05 GOLD PCB R/A
• Series：Archer M50
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board or Cable
• Number of Positions：62
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.136" (3.46mm)
• Contact Length - Post：0.094" (2.40mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1A
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3203145
