M50-3612042R

Headers, Male Pins Overview

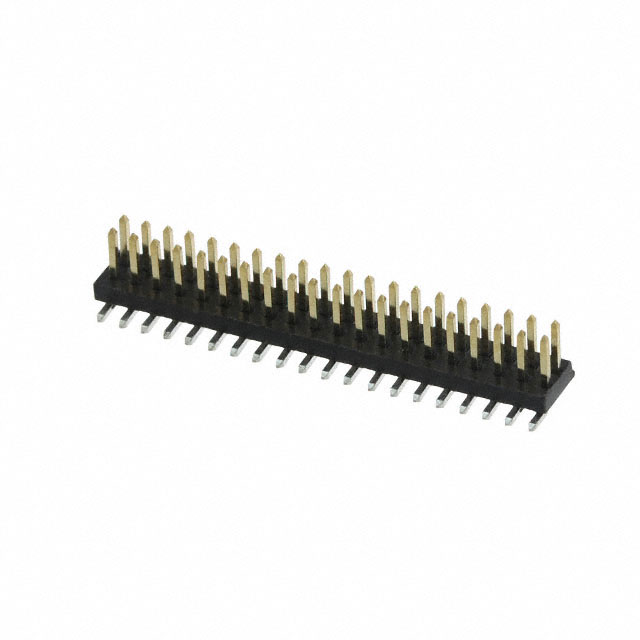

The Harwin M50-3612042R is a surface-mount header connector from the Archer M50 series. It features 40 positions arranged in a dual-row configuration with a 1.27mm pitch. The connector utilizes square male pins made of brass, finished with gold plating on the mating interface and tin on the tail. Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to 105°C. The unit has a rated current of 1A and voltage of 250V, with UL94 V-0 black thermoplastic insulation.

Headers, Male Pins Feature Summary

• Surface mount design optimized for pick-and-place assembly processes
• Push-pull locking mechanism ensures secure connection retention
• Gold-plated square pin contacts provide reliable signal transmission
• High-temperature resistant thermoplastic insulation housing

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic circuit assemblies requiring SMD headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to ensure correct packaging and termination specifications. Confirm that the selected variant matches the required contact length and insulation height for the target PCB layout. Cross-reference the component status to confirm availability before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density SMD header is required for rigid board connections. Ensure the mating connector supports the 1.27mm pitch and square pin geometry. Verify that the application environment stays within the specified thermal limits and electrical ratings for safe operation.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, designed for compact electronic assemblies. It serves as a standard interconnect solution for modern PCB designs where space efficiency and automated manufacturing compatibility are prioritized over manual insertion methods.

Headers, Male Pins Replacement Considerations

Consult the official Harwin cross-reference documentation for verified substitute part numbers. Do not assume functional equivalence with generic connectors lacking identical pitch and locking mechanisms.
