M50-4801545

Headers, Male Pins Overview

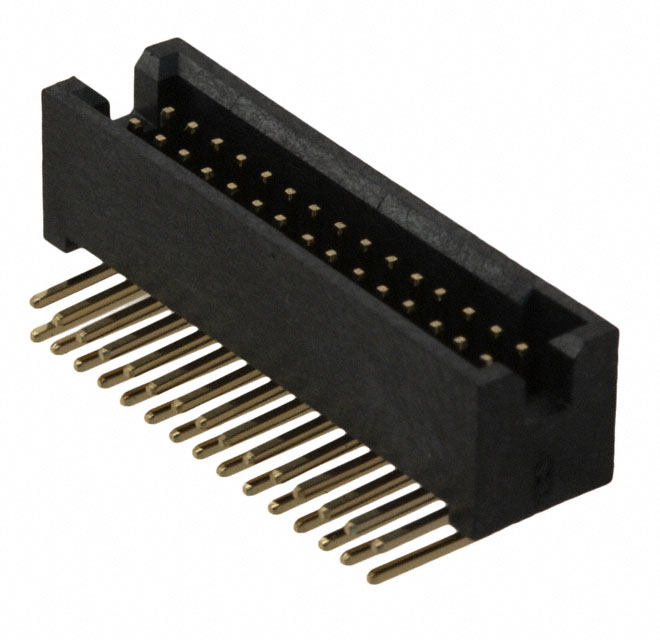

The M50-4801545 is a rectangular connector from the Archer M50 series, manufactured by Harwin Inc. It is a header with male pins, featuring a right-angle orientation and a 2-row configuration with 30 positions (2x15). The connector utilizes a 1.27 mm pitch. The housing is constructed from Liquid Crystal Polymer (LCP), and the contacts are gold-plated phosphor bronze. It is supplied in tube packaging.

Headers, Male Pins Feature Summary

• Right-angle header design for space-efficient PCB mounting
• Gold-plated contacts for reliable signal transmission
• LCP insulation material for thermal stability

Headers, Male Pins Applications

• General electronic interconnects
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number M50-4801545 against official Harwin documentation to confirm pin count, row configuration, and termination type. Ensure compatibility with mating connectors within the same M50 series family. Check for any updated environmental compliance certifications or RoHS status directly from the manufacturer's current datasheet before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, 2-row header with 1.27 mm pitch is required. The 30-position layout suits applications needing dense I/O connections. Verify that the LCP housing and gold plating meet the environmental and electrical requirements of the target system. Confirm mechanical fit and mating partner availability.

Headers, Male Pins Part Context

This component belongs to the Archer M50 series, which offers various configurations including straight and right-angle headers, IDC connectors, and sockets. The series is known for its compact 1.27 mm pitch and robust construction using materials like LCP and phosphor bronze, suitable for high-density board-to-board or cable-to-board connections.
