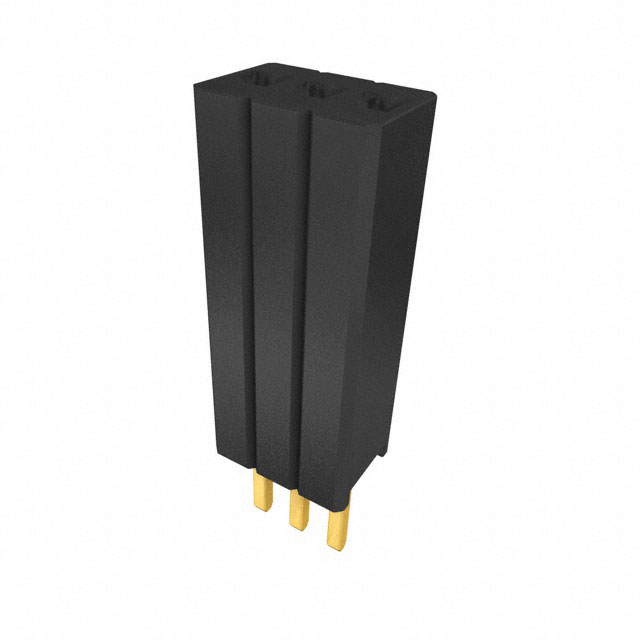

M52-5010345

$0.22

Description：CONN RCPT 3POS 0.05 GOLD PCB
Series：Archer M52
Mfr：Harwin Inc.
Package：Bulk,Tube

SKU:13a078bc3d52 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M52-5010345 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 3POS 0.05 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M52-5010345

Description：CONN RCPT 3POS 0.05 GOLD PCB
Series：Archer M52
Mfr：Harwin Inc.
Package：Bulk,Tube
Connector Type：Receptacle
Contact Type：Forked
Style：Board to Board
Number of Positions：3
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.335" (8.51mm)
Contact Length - Post：0.110" (2.79mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：-
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M52-5010345

M52-5010345

Headers, Receptacles, Female Sockets Overview

The M52-5010345 is a vertical socket header from the Harwin ARCHER series, designed for board-to-board interconnections. It features a single row with three positions and a 1.27 mm pitch. The connector utilizes gold-plated female contacts and solder pin termination for through-hole mounting. Constructed with a nylon housing, it supports a rated voltage of 500V and operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

Vertical orientation facilitates compact board stacking configurations
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
Single-row architecture simplifies routing in dense layouts

Headers, Receptacles, Female Sockets Applications

Industrial control systems requiring secure board connections
Medical electronic equipment demanding high reliability
Metering and measurement devices needing stable data operations

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact contact plating thickness and housing material variations. Ensure compatibility with mating pins regarding current ratings and thermal limits before integration. Cross-reference RoHS compliance status with the latest manufacturer declarations to meet regional regulatory standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row vertical interface is required for 1.27 mm pitch applications. Consider the 500V rating and 105°C operating limit for environmental suitability. Evaluate mechanical retention needs and verify that the through-hole soldering process aligns with the assembly line capabilities.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the ARCHER M52 series, which provides robust headers and wire housings. The series is engineered for harsh environments, offering durability and secure connections for critical electronic systems across various industries including defense and aerospace.
