M55-6108042R

Headers, Receptacles, Female Sockets Overview

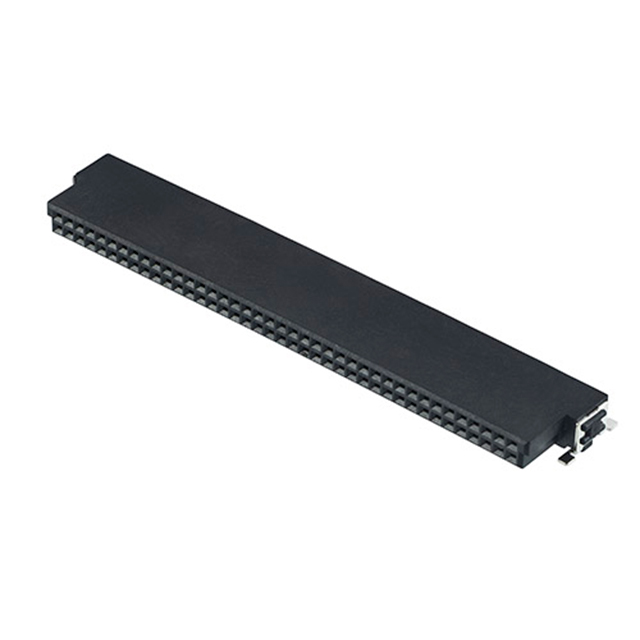

The Harwin M55-6108042R is an Archer Kontrol series board-to-board and mezzanine connector receptacle. It features 80 positions with a 1.27 mm (0.050 inch) pitch. The component utilizes a surface mount technology (SMT) package configured for right-angle mounting. Contact surfaces are finished with gold plating to ensure reliable electrical performance. The design incorporates rear mounting capabilities, providing mechanical stability during assembly and operation.

Headers, Receptacles, Female Sockets Feature Summary

• Archer Kontrol series architecture designed for high-density interconnect applications
• Right-angle surface mount configuration with rear mounting support
• Gold-plated contacts ensuring durable signal transmission
• Dual-row layout accommodating 80 connection points

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in compact electronic assemblies
• Mezzanine card connections requiring high pin counts
• Industrial control systems utilizing dense circuit layouts
• Telecommunications equipment internal connectivity

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'R' against the manufacturer's official documentation to confirm the right-angle orientation and rear-mounting specifications. Ensure that the required gold contact finish aligns with the project's environmental and conductivity requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density 80-position interface is necessary within constrained vertical spaces. The right-angle SMT form factor facilitates efficient PCB routing. Confirm that the 1.27 mm pitch matches the mating connector specifications to guarantee proper alignment and electrical continuity in the final assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer Kontrol family, which specializes in robust board-to-board solutions. The M55-6108042R specifically addresses the need for reliable, high-pin-count connections in modern electronics where space efficiency and mechanical stability are critical design constraints.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 80-position count, 1.27 mm pitch, and right-angle SMT form factor. Verify compatibility with existing mating headers or cables. Cross-reference with other Harwin M55 variants only if they explicitly share these dimensional and electrical characteristics.
