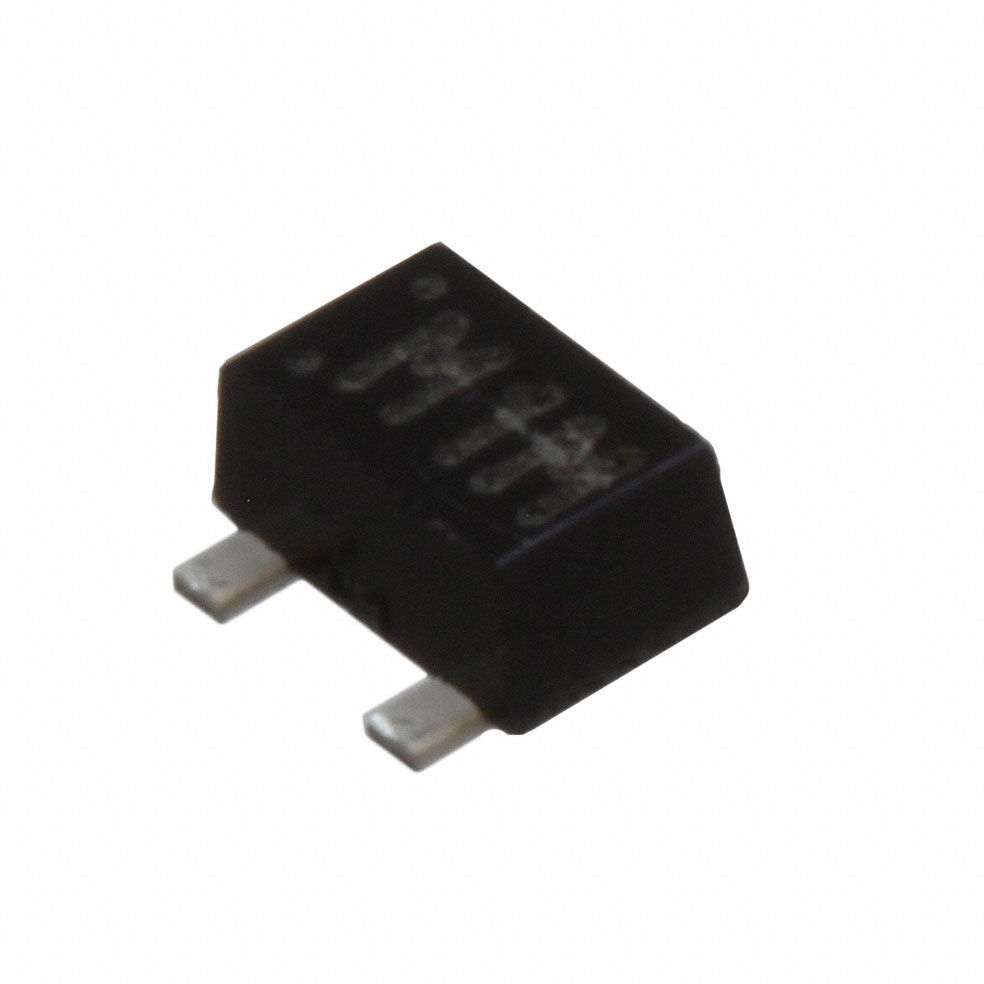

MA3J74400L

Description：DIODE SCHOTTK 30V 200MA SMINI3F1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)

SKU:90b5a6060b84 Category: Single Diodes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MA3J74400L is listed in the Single Diodes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is DIODE SCHOTTK 30V 200MA SMINI3F1. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for MA3J74400L

Description：DIODE SCHOTTK 30V 200MA SMINI3F1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：200mA
Voltage - Forward (Vf) (Max) @ If：550 mV @ 200 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：3 ns
Current - Reverse Leakage @ Vr：50 µA @ 30 V
Capacitance @ Vr, F：30pF @ 0V, 1MHz
Mounting Type：Surface Mount
Package / Case：SC-85
Supplier Device Package：SMini3-F1
Operating Temperature - Junction：150°C (Max)

Single Diodes datasheet and documents for MA3J74400L

MA3J74400L

Single Diodes Overview

The Panasonic MA3J74400L is a silicon epitaxial planar Schottky Barrier Diode designed for super high-speed switching and small current rectification. It operates with a reverse voltage of 30 V and an average forward current of 200 mA. The device features a low forward voltage of 0.55 V at rated current, a terminal capacitance of 30 pF, and a reverse recovery time of 3.0 ns. It is housed in the EIAJ SC-79 SMini3-F1 package.

Single Diodes Feature Summary

High-density mounting capability
Super high-speed switching performance

Single Diodes Applications

Small current rectification
General electronic equipment
Communications equipment

Single Diodes Procurement Notes

Verify the current lifecycle status on the official Panasonic semiconductor website before procurement, as this component may be classified under maintenance or discontinued stages. Confirm that the specific ordering suffix matches the required packaging format. Ensure compliance with RoHS Directive (EU 2002/95/EC) requirements for your target market.

Single Diodes Selection Notes

Select this component for applications requiring fast switching speeds and compact form factors. The 30 V rating suits low-voltage circuits, while the 200 mA current capacity supports small signal rectification. Evaluate thermal management to maintain junction temperature within the 150 °C limit during operation.

Single Diodes Part Context

This part belongs to the Panasonic Schottky Barrier Diode series, specifically engineered for high-speed switching applications. It utilizes a silicon epitaxial planar structure to achieve superior electrical characteristics compared to standard diodes, making it suitable for modern compact electronic designs.

Single Diodes Replacement Considerations

Consult the official Panasonic replacement list for verified substitute part numbers. Cross-reference absolute maximum ratings and package dimensions to ensure compatibility with existing PCB layouts and circuit requirements.
