MAGX-100027-050C0P

RF Amplifiers Overview

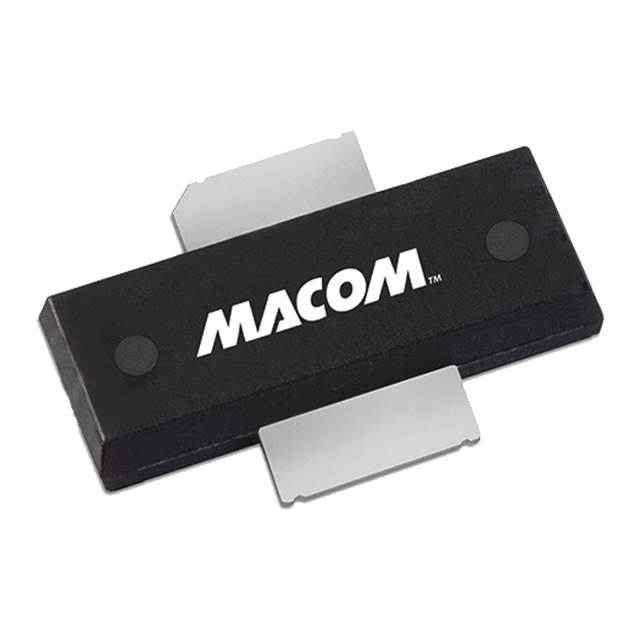

The MAGX-100027-050C0P is a high-power Gallium Nitride (GaN) on Silicon High Electron Mobility Transistor (HEMT) device manufactured by MACOM Technology Solutions. It is specifically designed as a depletion-mode amplifier optimized for operation across the DC to 2700 MHz frequency range. The component delivers high power output capabilities suitable for demanding RF applications within this bandwidth.

RF Amplifiers Feature Summary

• High-power GaN on Silicon HEMT technology
• Depletion-mode amplifier configuration
• Optimized for DC to 2700 MHz frequency operation

RF Amplifiers Applications

• RF power amplification in communication systems
• Broadband signal processing circuits
• Military and aerospace radar transmitters

RF Amplifiers Procurement Notes

Verify the specific ordering suffix against official MACOM documentation to ensure correct device characteristics. Confirm that the requested part matches the exact model number, as suffixes may indicate variations in testing or packaging. Check current availability status directly with authorized distributors or the manufacturer, as supply conditions can change without notice.

RF Amplifiers Selection Notes

Select this component when a high-power, wideband solution is required for frequencies up to 2.7 GHz. The depletion-mode architecture is critical for specific biasing requirements in amplifier designs. Ensure thermal management strategies align with the high-power dissipation capabilities inherent to GaN HEMT devices in this frequency band.

RF Amplifiers Part Context

This device belongs to MACOM's MAGX series of high-power GaN amplifiers. It utilizes advanced GaN-on-Si HEMT technology to provide robust performance in RF environments. The product line is engineered for reliability and efficiency in broadband applications requiring significant power handling.

RF Amplifiers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
