MCF08062G330-T

Common Mode Chokes Overview

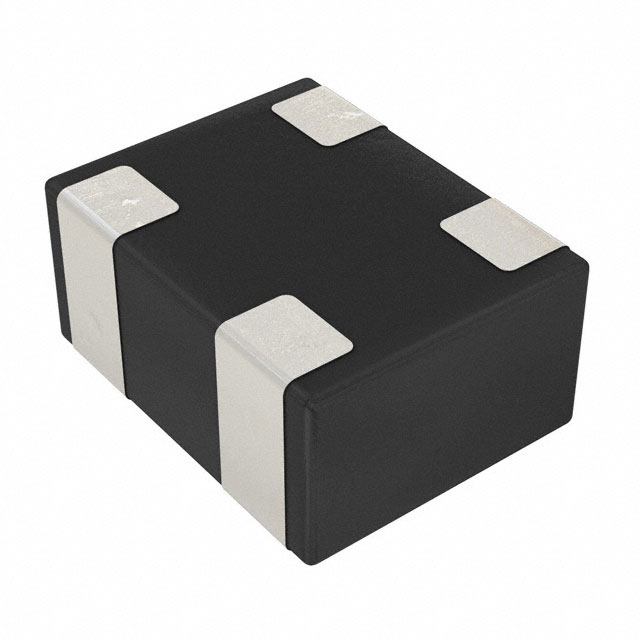

The MCF08062G330-T is a multilayer common mode choke coil manufactured by Taiyo Yuden. It features a surface-mount design in an 0806 (2016 metric) package with dimensions of 0.85 mm length, 0.65 mm width, and 0.4 mm height. The component provides 33 Ohms impedance at a test frequency of 100 kHz and supports a maximum DC current of 100 mA. It operates within a temperature range of -40°C to +85°C and includes four channels for noise suppression.

Common Mode Chokes Feature Summary

• Multilayer construction for compact surface-mount integration
• Shielded design to minimize electromagnetic interference
• Four-line configuration for multi-channel signal protection

Common Mode Chokes Applications

• USB 2.0 interface noise suppression
• High-speed data line filtering
• Portable electronic device EMI reduction

Common Mode Chokes Procurement Notes

Verify the current promotional status directly with Taiyo Yuden or authorized distributors, as this component may be subject to discontinuation or limited availability. Confirm RoHS compliance details and specific packaging quantities before finalizing procurement plans. Ensure the selected variant matches the required impedance and current ratings for the target application.

Common Mode Chokes Selection Notes

Select this component when a low-profile, four-channel common mode choke is required for high-density PCB layouts. The 0806 footprint offers a balance between size and performance for portable devices. Verify that the 100 mA current rating and 33 Ohm impedance align with the signal integrity requirements of the specific bus interface being protected.

Common Mode Chokes Part Context

This part belongs to the MCF series of multilayer common mode chokes from Taiyo Yuden. These components are designed for suppressing common mode noise in high-speed digital circuits. The MCF08062G330-T specifically utilizes a shielded structure to enhance performance in compact applications such as mobile phones and USB peripherals.

Common Mode Chokes Replacement Considerations

Consult official Taiyo Yuden documentation for confirmed substitute part numbers. Cross-referencing with other manufacturers requires careful validation of impedance curves, current ratings, and physical dimensions to ensure compatibility.
