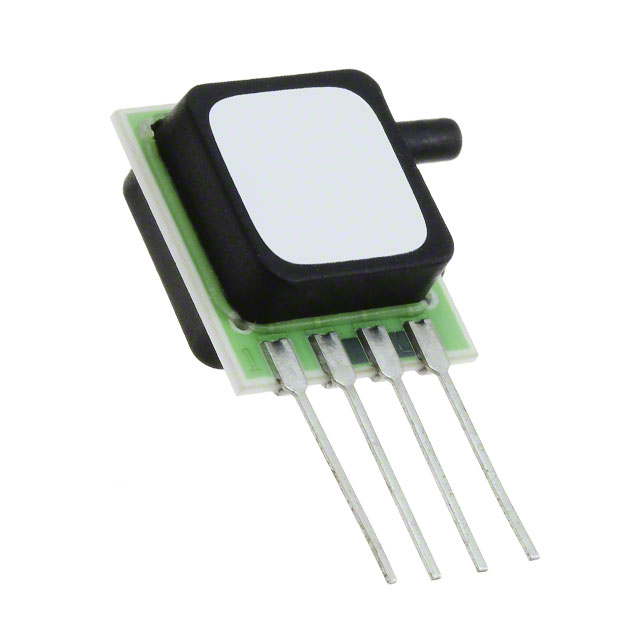

MLV-015A-E1BS-N

$39.81

Description：SENSOR 15PSIA 0.09" .0375V 4SIP
Series：MLV
Mfr：Amphenol All Sensors Corporation
Package：Bulk

SKU:d864eccffebf Category: Pressure Sensors, Transducers Brand: Amphenol All Sensors Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MLV-015A-E1BS-N is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol All Sensors Corporation. Its product description is SENSOR 15PSIA 0.09" .0375V 4SIP. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for MLV-015A-E1BS-N

Description：SENSOR 15PSIA 0.09" .0375V 4SIP
Series：MLV
Mfr：Amphenol All Sensors Corporation
Package：Bulk
Applications：Board Mount
Pressure Type：Absolute
Operating Pressure：15PSI (103.42kPa)
Output Type：Wheatstone Bridge
Output：0 mV ~ 37.5 mV (5V)
Accuracy：±0.5%
Voltage - Supply：12V
Port Size：Male - 0.09" (2.24mm) Tube, Dual
Port Style：Barbed
Features：Temperature Compensated
Termination Style：PC Pin
Maximum Pressure：60PSI (413.69kPa)
Operating Temperature：-25°C ~ 85°C
Mounting Type：Through Hole
Package / Case：4-SIP, Dual Ports, Same Side
Supplier Device Package：4-SIP
Grade：-
Qualification：-

Pressure Sensors Transducers datasheet and documents for MLV-015A-E1BS-N

MLV-015A-E1BS-N

Pressure Sensors Transducers Overview

The MLV-015A-E1BS-N is a board mount pressure sensor manufactured by Amphenol All Sensors. It features an absolute pressure type with a working pressure of 15 psi. The device utilizes through-hole mounting and is housed in a 4-SIP package with dual ports located on the same side. It operates within a temperature range of -25 C to +85 C and supports a maximum supply voltage of 5 V.

Pressure Sensors Transducers Feature Summary

Absolute pressure sensing capability for precise measurement
Through-hole mounting for secure PCB integration
Dual barbless ports positioned on the same side

Pressure Sensors Transducers Applications

HVAC system monitoring
Industrial process control
Medical gas equipment

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and specific lot codes against current datasheets. Ensure storage conditions maintain integrity prior to installation. Check for obsolescence notices as availability may be limited.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring absolute pressure measurement up to 15 psi. The 4-SIP package suits through-hole assembly processes. Verify port configuration matches system tubing requirements. Ensure operating voltage aligns with 5 V supply constraints.

Pressure Sensors Transducers Part Context

This component belongs to the MLV series of board mount pressure sensors from Amphenol All Sensors. The series offers various pressure ranges and interface options. This specific part provides absolute pressure sensing in a compact SIP package suitable for space-constrained electronic designs.
