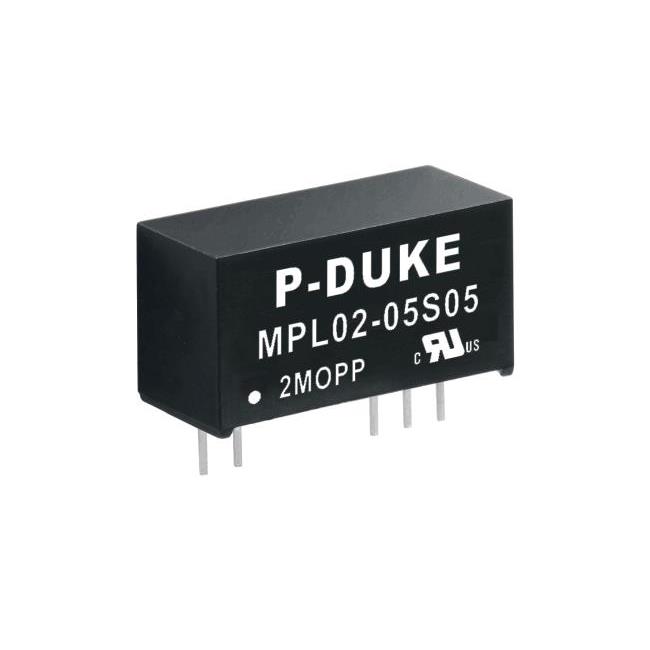

MPL02-05D05

MPL02-05D05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 2W / VOUT: 5. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPL02-05D05

• Description：ISOLATED / 2W / VOUT: 5
• Series：MPL02 (2W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA, 200mA
• Power (Watts)：2 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 5 Leads
• Size / Dimension：0.86" L x 0.39" W x 0.49" H (21.8mm x 9.9mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MPL02-05D05
