MPX5010GS

Pressure Sensors Transducers Overview

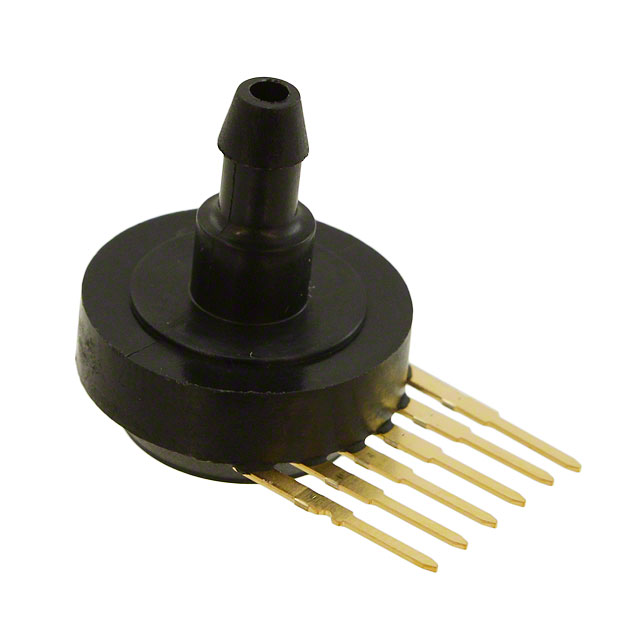

The MPX5010GS is a precision pressure sensor designed for automotive applications, manufactured by NXP USA Inc. It delivers a measurement range of 0 to 10 kPa (1.45 PSI) with a vented gauge configuration. The device features on-chip signal conditioning and temperature compensation to ensure accuracy across operating conditions. It provides an analog voltage output ranging from 0.2 V to 4.7 V. The sensor utilizes a 6-SIP module package with male ports sized at 0.19 inches (4.93 mm). It operates within a temperature range of -40°C to 125°C and supports supply voltages up to 4.7 V.

Pressure Sensors Transducers Feature Summary

• Integrates on-chip signal conditioning for precise pressure measurement
• Includes built-in temperature compensation for stable performance
• Features vented gauge design suitable for atmospheric reference
• Provides analog voltage output compatible with standard interfaces

Pressure Sensors Transducers Applications

• Automotive pressure monitoring systems
• Industrial process control instrumentation
• Medical diagnostic equipment requiring low-pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix GS against official NXP documentation to confirm the vented gauge configuration and package type. Ensure compatibility with system supply voltage limits and port dimensions. Check component status as some variants may be discontinued. Confirm RoHS compliance requirements for your manufacturing process. Validate that the analog output range matches your microcontroller or ADC input specifications before integration.

Pressure Sensors Transducers Selection Notes

Select this component when a low-pressure gauge measurement is required in automotive or industrial environments. The integrated temperature compensation reduces the need for external calibration. Consider the 6-SIP package for through-hole mounting convenience. Evaluate the 0.2 V to 4.7 V output span against your system's noise immunity needs. Ensure the vented port design aligns with your environmental sealing requirements.

Pressure Sensors Transducers Part Context

The MPX5010GS belongs to the MPX50 series of pressure sensors from NXP. This family offers various pressure ranges and configurations including differential and absolute types. The MPX5010 variant specifically targets low-pressure applications around 10 kPa. The series is known for reliability in harsh environments due to silicon-based sensing elements and integrated electronics.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Consult NXP official documentation for direct replacements or cross-reference guides.
