MPX5010GSX

Pressure Sensors Transducers Overview

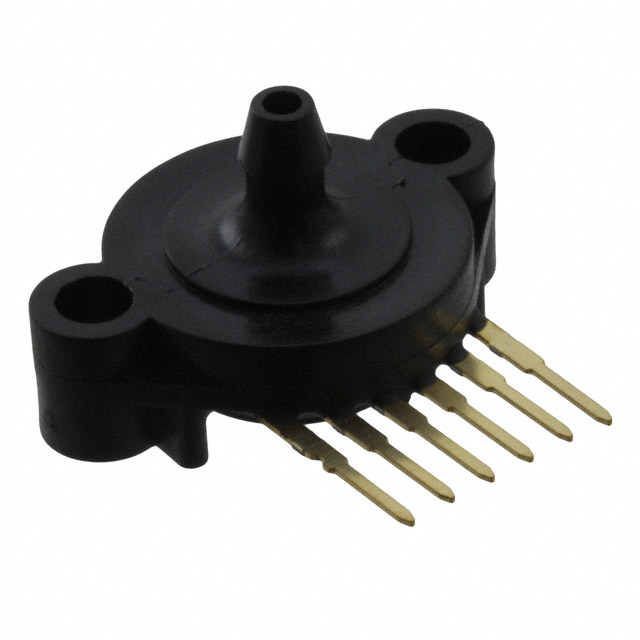

The MPX5010GSX is a vented gauge pressure sensor from the MPX5010 series, manufactured by NXP USA Inc. It features an analog voltage output ranging from 0.2V to 4.7V for a working pressure of 1.45PSI (10kPa). The device operates within a supply voltage range of 4.75V to 5.25V and offers an accuracy of ±5%. It is housed in a 6-SIP module package with PC pin termination, designed for board mount applications. The sensor supports a maximum pressure of 5.8PSI (40kPa) and functions between -40°C and 125°C.

Pressure Sensors Transducers Feature Summary

• Integrated temperature compensation for stable performance across operating ranges
• On-chip signal conditioning ensures precise analog voltage output
• Robust construction suitable for automotive and industrial environments

Pressure Sensors Transducers Applications

• Automotive tire pressure monitoring systems
• Industrial process control instrumentation
• HVAC system pressure monitoring

Pressure Sensors Transducers Procurement Notes

This component is officially marked as obsolete by the manufacturer. Verification of availability should focus on surplus distributors or secondary market channels rather than direct manufacturing orders. Ensure that any sourced units are genuine and match the specific GSX suffix requirements for package and port configuration. Cross-reference part numbers carefully to confirm compatibility with existing designs.

Pressure Sensors Transducers Selection Notes

Select this sensor when a low-pressure vented gauge measurement is required with analog voltage output. The 1.45PSI range suits applications needing precise monitoring of small pressure differentials. Consider the 6-SIP package for through-hole mounting needs. Verify that the ±5% accuracy meets system tolerance requirements before finalizing the design choice.

Pressure Sensors Transducers Part Context

Part of the MPX5010 series, which includes various pressure ranges and configurations. This specific model provides a balanced solution for moderate pressure sensing tasks. The series is known for reliability in harsh environments, making it a common choice in legacy automotive and industrial designs where proven technology is preferred over newer digital alternatives.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers include MPX5010GP and MPX5010DP. These variants share identical electrical characteristics and functional specifications. Verify mechanical fit and pinout compatibility when substituting, as package variations may exist within the series.
