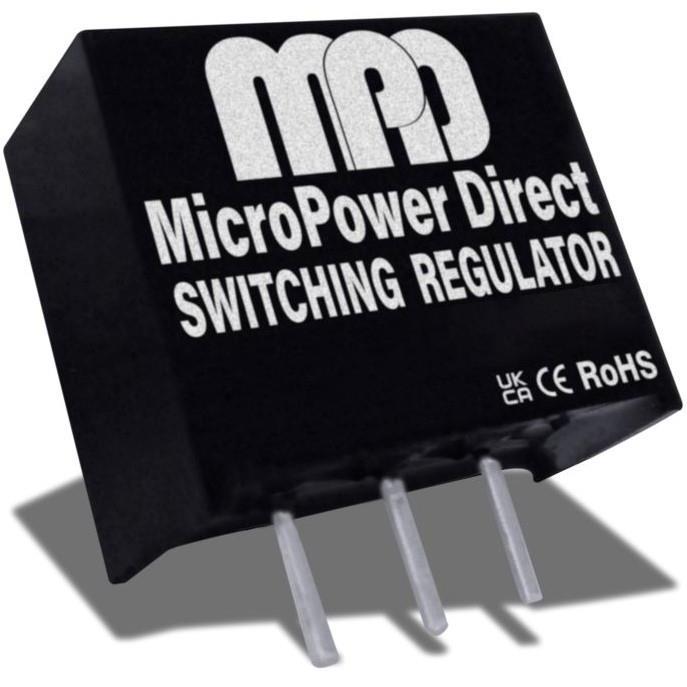

MSR7805-03.3BW

MSR7805-03.3BW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC CONVERTER,W,36V IN,3.3V OU. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MSR7805-03.3BW

• Description：DC/DC CONVERTER,W,36V IN,3.3V OU
• Series：MSR7805BW
• Mfr：MicroPower Direct
• Package：Box
• Type：Non-Isolated PoL Module
• Number of Outputs：-
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：3.3 W
• Voltage - Isolation：-
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output
• Operating Temperature：-40°C ~ 85°C
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：0.46" L x 0.40" W x 0.30" H (11.7mm x 10.2mm x 7.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MSR7805-03.3BW
