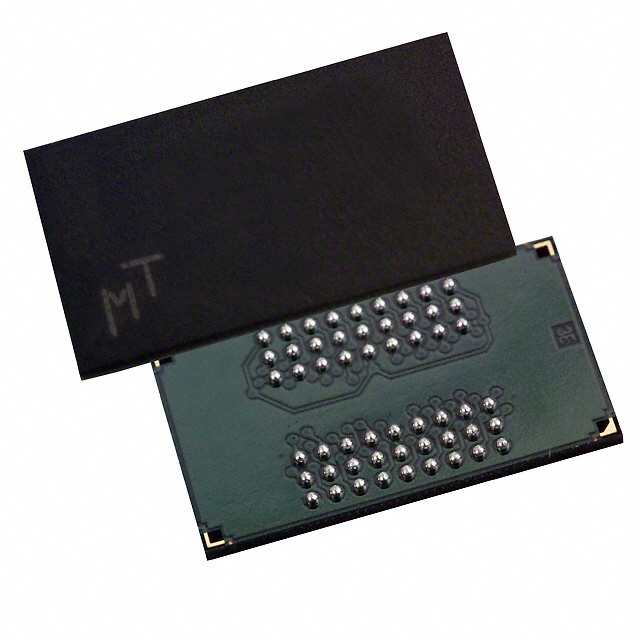

MT48H16M16LFBF-75:G TR

Description：IC DRAM 256MBIT PAR 54VFBGA
Series：-
Mfr：Micron Technology Inc.
Package：Tape & Reel (TR)

SKU:b1438994e05d Category: Memory IC Brand: Micron Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MT48H16M16LFBF-75:G TR is listed in the Memory IC range at ChipApex. The manufacturer field lists Micron Technology Inc.. Its product description is IC DRAM 256MBIT PAR 54VFBGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for MT48H16M16LFBF-75:G TR

Description：IC DRAM 256MBIT PAR 54VFBGA
Series：-
Mfr：Micron Technology Inc.
Package：Tape & Reel (TR)
Memory Type：Volatile
Memory Format：DRAM
Technology：SDRAM - Mobile LPSDR
Memory Size：256Mbit
Memory Organization：16M x 16
Memory Interface：Parallel
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：15ns
Voltage - Supply：1.7V ~ 1.95V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：54-VFBGA
Supplier Device Package：54-VFBGA (8x9)
Access Time：5.4 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for MT48H16M16LFBF-75:G TR

MT48H16M16LFBF-75:G TR

Memory IC Overview

The Micron MT48H16M16LFBF-75:G TR is a 256Mb Mobile SDRAM with a 16 Meg x 16 organization. It operates at VDD/VDDQ of 1.70–1.95V and supports clock rates up to 133 MHz with an access time of 6ns. The device uses a 54-ball VFBGA (8mm x 9mm) package and features four internal banks for concurrent operation. It includes programmable burst lengths, auto precharge, self-refresh modes, and partial-array self-refresh capabilities.

Memory IC Feature Summary

Fully synchronous interface with all signals registered on the positive edge of the system clock
Internal pipelined architecture allowing column address changes every clock cycle
Four internal banks enabling concurrent operations to hide precharge cycles
On-chip temperature sensor to dynamically control refresh rate

Memory IC Applications

Mobile phone memory systems
Personal digital assistants (PDAs)
Portable multimedia players
Embedded handheld devices

Memory IC Procurement Notes

Verify the component matches the exact part number MT48H16M16LFBF-75:G TR. Confirm the suffix IT indicates industrial temperature range compliance if required. Ensure the BF designation corresponds to the 54-ball VFBGA package. Check for RoHS compliance status as specified in the datasheet revision G documentation.

Memory IC Selection Notes

Select this component when a 256Mb capacity with a 16-bit data bus width is required. The -75 speed grade provides 133 MHz operation suitable for high-performance mobile applications. The L suffix denotes low power consumption characteristics. Verify that the 54-ball VFBGA footprint fits the target PCB layout constraints.

Memory IC Part Context

This part belongs to the Micron 256Mb Mobile SDRAM family, specifically the MT48H series designed for low-power portable electronics. It serves as a high-speed volatile memory solution replacing older asynchronous DRAMs in mobile platforms requiring faster data throughput and lower voltage operation.
