N160116G051

Overview

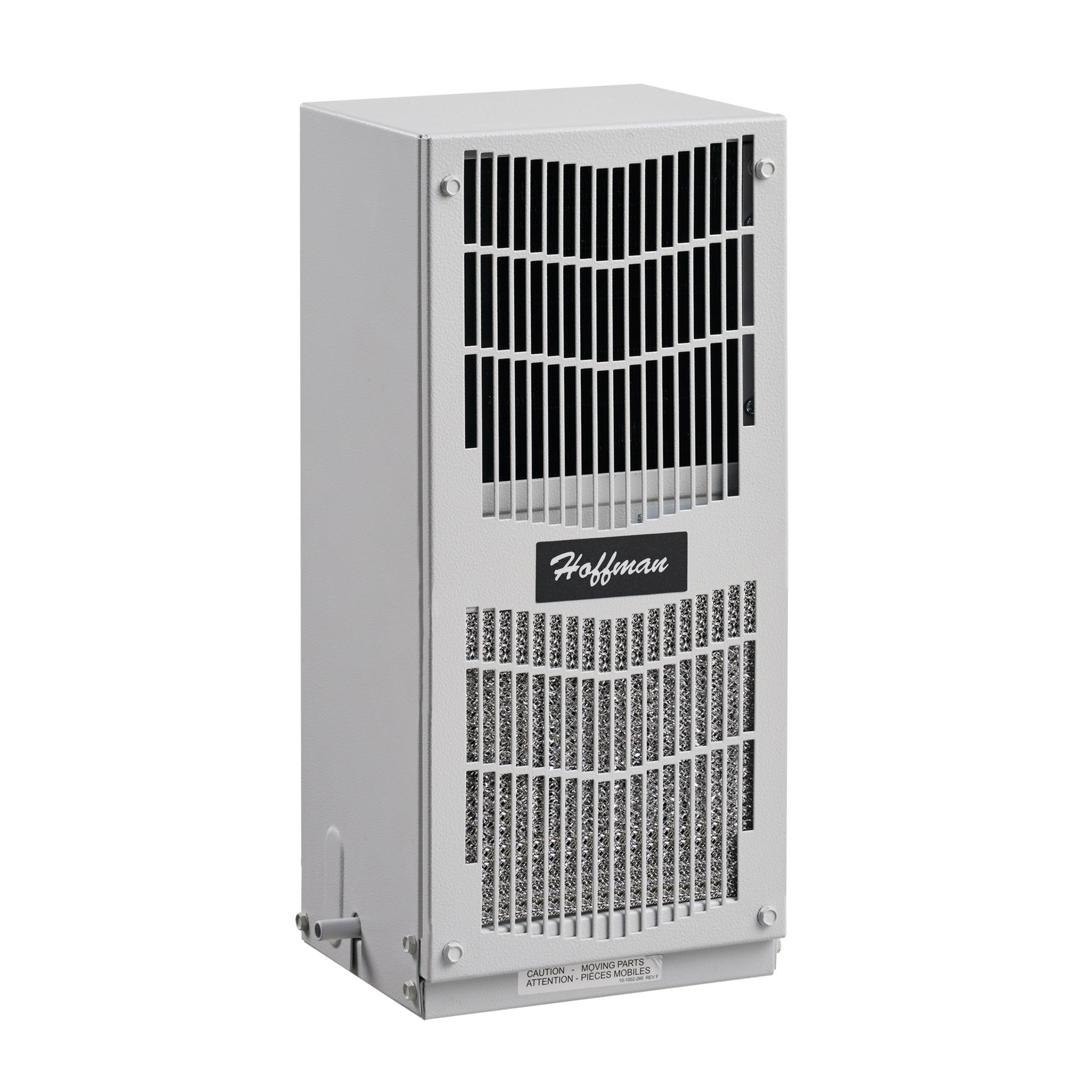

The N160116G051 is a SpectraCool Narrow indoor air conditioner manufactured by Hoffman Enclosures, Inc. Constructed from stainless steel, it provides an 800 BTU/hr cooling capacity and operates on 115 VAC power with a current rating of 3.6/3.5 A. Designed for narrow enclosures, this unit features a basic mechanical thermostat control and terminal connections. It is rated Type 4X for indoor protection against corrosion and environmental factors.

Feature Summary

• Stainless steel construction ensures durability in corrosive environments
• Narrow design specifically fits 12-inch deep floor- and wall-mount enclosures
• Basic mechanical thermostat provides reliable temperature regulation

Applications

• Indoor electrical enclosure climate control
• Corrosive industrial environments requiring Type 4X protection
• Narrow depth cabinet installations

Procurement Notes

Verify the specific voltage requirement of 115 VAC matches the site power supply before procurement. Confirm that the target enclosure depth is exactly 12 inches to ensure proper fitment of this narrow model. Check for any local code requirements regarding Type 4X rated equipment in the intended installation area.

Selection Notes

Select this model when a compact cooling solution is required for shallow enclosures. The stainless steel build is necessary for high-corrosion areas where aluminum units would degrade. Ensure the 800 BTU/hr capacity aligns with the internal heat load calculations for the specific application environment.

Part Context

This unit belongs to the SpectraCool Narrow series, which addresses space constraints in standard industrial cabinets. Unlike full-depth models, these are optimized for 12-inch deep enclosures, allowing effective thermal management without protruding into adjacent aisles or violating spatial limits.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
