NCP45540IMNTWG-H

Power Distribution Switches, Load Drivers Overview

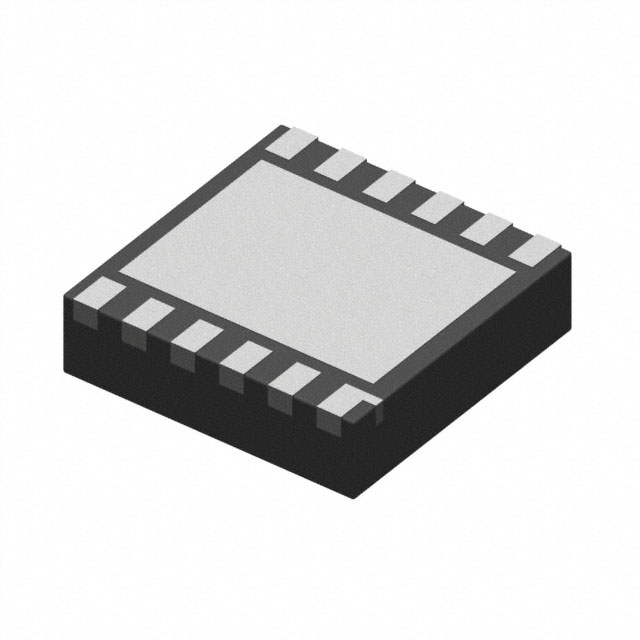

The NCP45540IMNTWG-H is a single-channel high-side load switch from the ecoSWITCH series, manufactured by onsemi. It integrates an N-channel MOSFET with a control circuit and charge pump, supporting input voltages from 0.5 V to 13.5 V. The device delivers a maximum continuous output current of 14 A with a typical on-resistance of 7.7 mΩ. It operates within a temperature range of -40°C to +85°C and is housed in a 12-lead DFN (3x3 mm) package with an exposed pad for thermal management.

Power Distribution Switches, Load Drivers Feature Summary

• Integrates a low on-resistance N-channel MOSFET with an internal charge pump for efficient high-side switching.
• Features adjustable slew rate control to limit inrush current during soft-start sequences.
• Includes comprehensive protection mechanisms such as thermal shutdown, under-voltage lockout, and short-circuit detection.
• Provides a power-good open-drain signal to indicate when the MOSFET gate is fully charged.

Power Distribution Switches, Load Drivers Applications

• Power domain switching in portable electronic devices
• Hot-swap applications requiring controlled turn-on
• Load distribution in embedded systems
• Battery-powered equipment with strict space constraints

Power Distribution Switches, Load Drivers Procurement Notes

Verify the specific suffix 'H' against the manufacturer's latest documentation to confirm compliance with RoHS3 standards and material declarations. Confirm that the 12-DFN package dimensions match the target PCB footprint. Ensure design reviews account for the exposed thermal pad requirements for adequate heat dissipation under full load conditions.

Power Distribution Switches, Load Drivers Selection Notes

Select this component for applications requiring high current handling in a minimal footprint. The integrated charge pump eliminates the need for external bootstrap components. Consider the adjustable slew rate feature if system-level inrush current limiting is critical. Verify that the 14 A current rating aligns with the peak load requirements of the connected circuitry.

Power Distribution Switches, Load Drivers Part Context

This part belongs to the NCP455xx family of load switches, which are designed for cost-effective power management solutions. The ecoSWITCH series emphasizes integration to reduce bill-of-materials count. The NCP45540 variant specifically targets high-current applications compared to lower-current siblings in the same package lineup.

Power Distribution Switches, Load Drivers Replacement Considerations

The NCP45541IMNTWG-H is a documented substitute within the same series. Verify pin compatibility and electrical parameter alignment before substitution. Cross-reference datasheet revisions to ensure functional equivalence regarding protection thresholds and timing characteristics.
