ND130-SM02-R

Pressure Sensors Transducers Overview

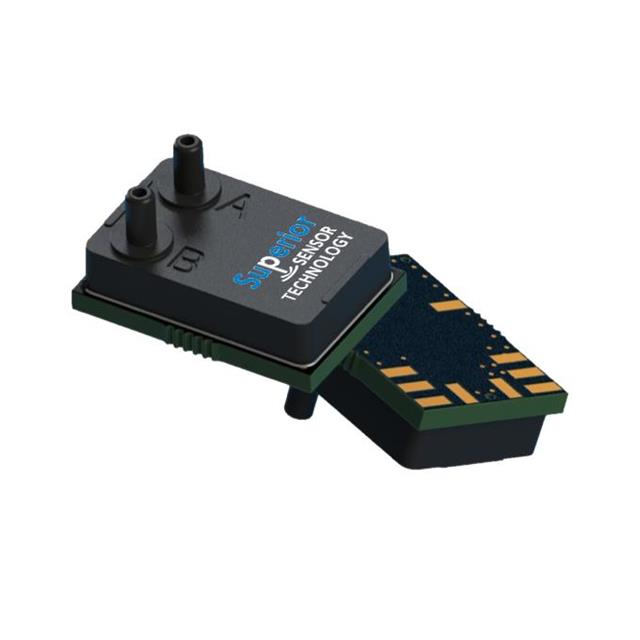

The ND130-SM02-R is a board mount differential pressure sensor from the ND Series by Superior Sensor Technology, Inc. It features a NimbleSense architecture with I2C/SPI digital output and 16-bit resolution. The operating range is 0.01 PSI to 0.36 PSI (0.06 kPa to 2.5 kPa), with a maximum pressure of 1.45 PSI (9.96 kPa). Supply voltage is 2.8V to 3.5V. Accuracy is ±0.1%. Ports are male, 0.08 inches (2.13 mm) dual tube. Package is 11-SMD, no lead, top port. Operating temperature is -20°C to 85°C.

Pressure Sensors Transducers Feature Summary

• NimbleSense architecture for unified differential and absolute pressure sensing
• Temperature compensated digital output via I2C or SPI interfaces
• High accuracy performance with ±0.1% precision rating

Pressure Sensors Transducers Applications

• Industrial differential pressure monitoring
• HVAC system air flow measurement
• Filtration status detection

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct configuration. Confirm that the selected variant matches the required pressure range and interface protocol for your application. Check RoHS compliance status and moisture sensitivity level requirements before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this component when a compact surface-mount solution is needed for low-range differential pressure applications. Ensure the supply voltage aligns with the 2.8V to 3.5V requirement. Verify that the male port style fits the tubing connections in the design. Consider the operating temperature range if the environment exceeds standard limits.

Pressure Sensors Transducers Part Context

This part belongs to the ND Series industrial pressure sensors. The series utilizes NimbleSense technology to combine differential and absolute sensing capabilities. It targets industrial applications requiring reliable, digitally output pressure data in a small form factor suitable for automated assembly processes.

Pressure Sensors Transducers Replacement Considerations

Consult the official ND Series product brief for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers without verifying pinout, electrical specifications, and mechanical dimensions.
