NTLJS053N12MCLTAG

$1.01

Description：PTNG 120V LL NCH IN UDFN 2.0X2.0
Series：PowerTrench®
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3e26a53290e2 Category: Single FETs, MOSFETs Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NTLJS053N12MCLTAG is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists onsemi. Its product description is PTNG 120V LL NCH IN UDFN 2.0X2.0. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for NTLJS053N12MCLTAG

Description：PTNG 120V LL NCH IN UDFN 2.0X2.0
Series：PowerTrench®
Mfr：onsemi
Package：Tape & Reel (TR),Cut Tape (CT)
FET Type：N-Channel
Technology：MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)：120 V
Current - Continuous Drain (Id) @ 25°C：4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)：4.5V, 10V
Rds On (Max) @ Id, Vgs：53mOhm @ 5.2A, 10V
Vgs(th) (Max) @ Id：3V @ 30µA
Gate Charge (Qg) (Max) @ Vgs：7.8 nC @ 10 V
Vgs (Max)：±20V
Input Capacitance (Ciss) (Max) @ Vds：520 pF @ 60 V
FET Feature：-
Power Dissipation (Max)：620mW (Ta)
Operating Temperature：-55°C ~ 150°C (TJ)
Grade：-
Qualification：-
Mounting Type：Surface Mount
Supplier Device Package：6-UDFN (2x2)
Package / Case：6-UDFN Exposed Pad

Single FETs, MOSFETs datasheet and documents for NTLJS053N12MCLTAG

NTLJS053N12MCLTAG

Single FETs, MOSFETs Overview

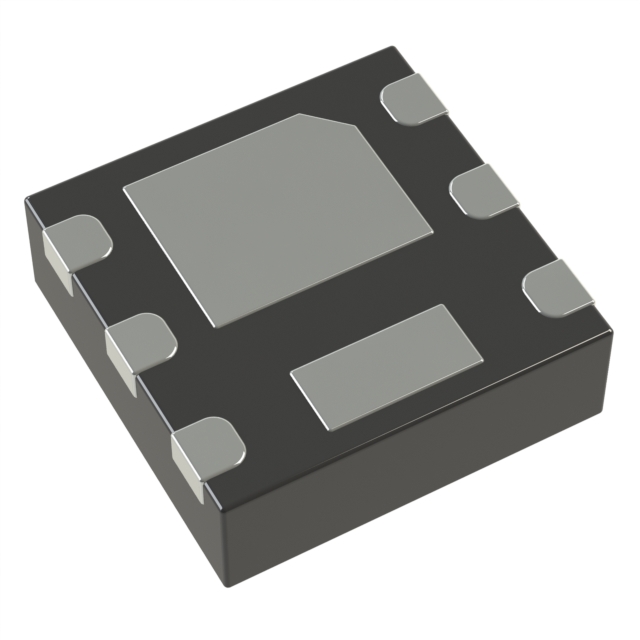

The NTLJS053N12MCLTAG is a single N-channel power MOSFET from onsemi, utilizing Shielded Gate PowerTrench technology. It features a 120 V drain-to-source voltage rating and a maximum continuous drain current of 4.5 A at 25 °C. The device offers a low on-resistance of 53 mΩ at VGS = 10 V and 70 mΩ at VGS = 4.5 V. Packaged in a compact UDFN6 (2x2 mm) footprint with a maximum height of 0.5 mm, it supports an operating junction temperature range from -55 °C to +150 °C.

Single FETs, MOSFETs Feature Summary

Shielded Gate MOSFET Technology for optimized switching performance
Ultra-low profile 0.5 mm maximum height in MicroFET 2x2 mm package
Reduced reverse recovery charge (Qrr) compared to standard alternatives
100% Unclamped Inductive Load (UIL) tested for reliability

Single FETs, MOSFETs Applications

Primary DC-DC converter stages
Synchronous rectification in DC-DC and AC-DC topologies
Motor drive circuits

Single FETs, MOSFETs Procurement Notes

Verify the complete part number including the TAG suffix for tape and reel packaging specifications. Confirm RoHS compliance and Pb-free status against current environmental declarations. Ensure the ordering information matches the specific shipping format requirements for automated assembly processes.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring a small form factor due to the 2x2 mm UDFN6 package. Consider the 4.5 A continuous current limit and thermal resistance values when designing heat dissipation strategies. Evaluate the gate threshold voltage characteristics to ensure compatibility with the intended logic-level drive signals.

Single FETs, MOSFETs Part Context

This device belongs to the NTLJS series of single N-channel MOSFETs manufactured by onsemi. It utilizes the PowerTrench/C0041 architecture designed to minimize switching losses and electromagnetic interference. The product line emphasizes high efficiency and compact physical dimensions suitable for modern space-constrained electronic designs.
