NTMTSC4D3N15MC

Single FETs, MOSFETs Overview

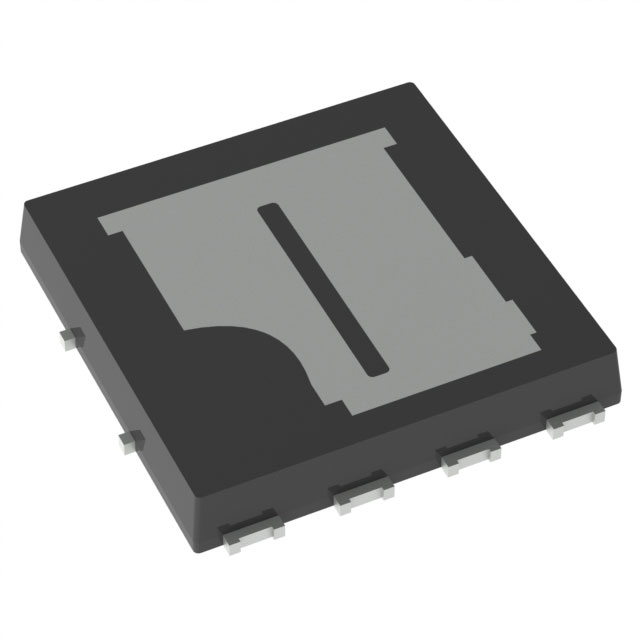

The onsemi NTMTSC4D3N15MC is a single N-channel power MOSFET rated for 150V drain-source breakdown voltage and 174A maximum continuous drain current. It features a maximum on-resistance of 4.45mΩ at 10V gate drive. The device utilizes the TDFNW8 Dual Cool package, measuring 8x8mm, which integrates top and bottom cooling capabilities to enhance thermal performance in compact designs.

Single FETs, MOSFETs Feature Summary

• Dual-side thermal management via TDFNW8 Dual Cool packaging
• Compact 8x8mm footprint optimized for space-constrained layouts
• Low on-resistance for reduced conduction losses

Single FETs, MOSFETs Applications

• Industrial motor drivers
• Battery management systems
• Uninterruptible power supplies

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm pin configuration and thermal pad options. Ensure the procurement channel provides genuine components with traceable manufacturing dates. Cross-reference the part number with the latest revision history to avoid obsolete stock or variant mismatches during integration.

Single FETs, MOSFETs Selection Notes

Select this component when high current density and efficient heat dissipation are required within strict spatial limits. The dual-cool architecture supports higher power densities compared to standard single-sided packages. Evaluate thermal resistance parameters relative to the target PCB copper area to ensure junction temperature remains within safe operating limits under peak load conditions.

Single FETs, MOSFETs Part Context

This device belongs to onsemi's Power 88 series, designed for high-efficiency power conversion. It replaces older generation MOSFETs by offering superior current handling in a similar footprint. The technology focuses on minimizing both electrical and thermal resistances to improve overall system efficiency in industrial and consumer applications.

Single FETs, MOSFETs Replacement Considerations

Direct substitutes include other onsemi parts from the same Power 88 family with compatible voltage and current ratings. Verify pinout compatibility before swapping with generic equivalents. Check if alternative manufacturers offer matching thermal characteristics and on-resistance values for seamless integration.
