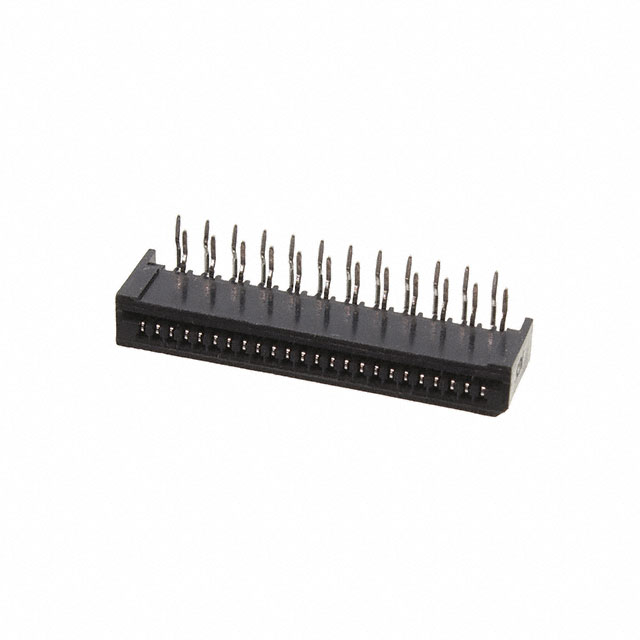

PCB-B-24-SA-25

PCB-B-24-SA-25 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Adam Tech. Its product description is CONN FFC FPC TOP 24POS 1.25MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for PCB-B-24-SA-25

• Description：CONN FFC FPC TOP 24POS 1.25MM RA
• Series：PCB
• Mfr：Adam Tech
• Package：Tube
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：24
• Pitch：0.049" (1.25mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.197" (5.00mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polybutylene Terephthalate (PBT), Glass Filled
• Actuator Material：-
• Features：Low Insertion Force (LIF)
• Voltage Rating：250V
• Operating Temperature：-55°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for PCB-B-24-SA-25
