PEWAN012-14OMT

Antennas RF Overview

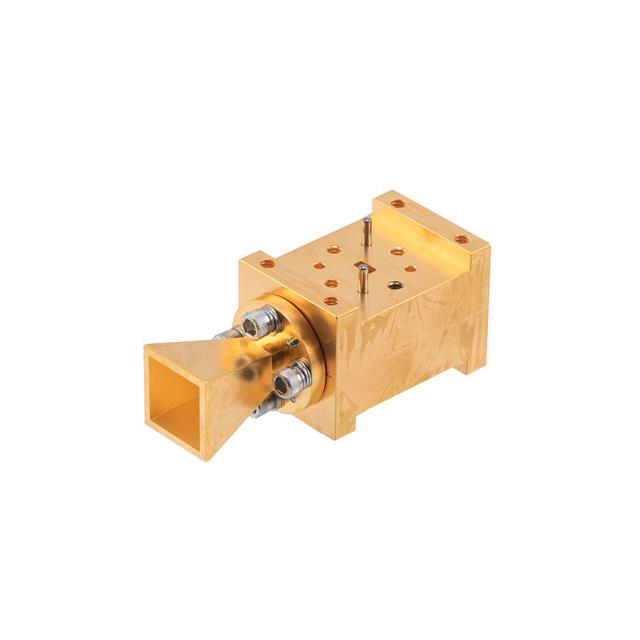

The Pasternack PEWAN012-14OMT is a WR-15 waveguide dual polarized horn antenna designed for high-frequency applications. It operates within the 50 GHz to 75 GHz frequency range and provides a nominal gain of 15 dBi. The component features a UG-387/U flange for secure mounting and utilizes probe waveguide technology. This assembly is engineered for precision RF signal transmission in demanding environments requiring stable dual polarization performance.

Antennas RF Feature Summary

• Dual polarized radiation pattern for enhanced signal diversity
• WR-15 waveguide interface with UG-387/U flange mounting
• Nominal 15 dBi gain across the operational bandwidth

Antennas RF Applications

• Millimeter wave radar systems
• Satellite communication ground stations
• High-speed wireless test and measurement setups

Antennas RF Procurement Notes

Verify the specific frequency range requirements against the 50 GHz to 75 GHz specification before ordering. Confirm that the receiving equipment supports WR-15 waveguide interfaces and UG-387/U flanges. Ensure environmental conditions align with the antenna's operational limits. Cross-reference the datasheet for precise VSWR and polarization isolation metrics relevant to your system design.

Antennas RF Selection Notes

Select this model when a fixed-gain, dual-polarized solution is required for the 50-75 GHz band. Consider the physical dimensions and weight constraints associated with waveguide horns. Evaluate the need for probe-type coupling versus other waveguide transitions. Compare against similar Pasternack models like the PEWAN012-15OMT if the application extends beyond 75 GHz.

Antennas RF Part Context

This component belongs to Pasternack's line of WR-15 waveguide antennas, which are specialized for millimeter-wave frequencies. These antennas are part of a broader portfolio of RF interconnect solutions designed for defense, aerospace, and telecommunications sectors where high-frequency stability and low loss are critical.
