PHT-107-01-S-S

Headers, Male Pins Overview

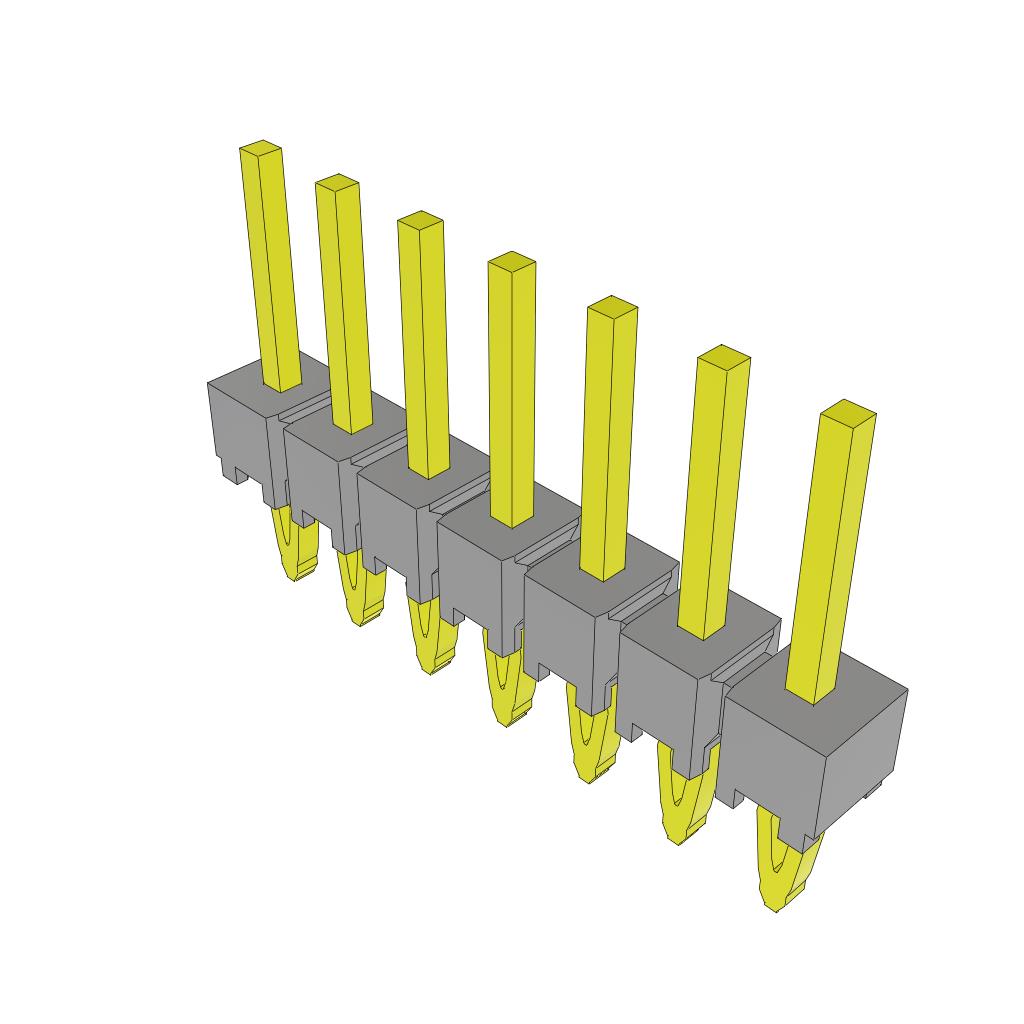

The PHT-107-01-S-S is a 7-position, single-row board-to-board header from the Samtec PHT series. It features a 2.54 mm (0.100 inch) pitch and utilizes press-fit termination for through-hole mounting. The connector employs phosphor bronze contacts with gold plating on the mating interface and tin plating on the column. Rated for 4.8 A per contact at 406 V, it operates within a temperature range of -55°C to +125°C. The housing is constructed from liquid crystal polymer (LCP) with a UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Press-fit termination ensures reliable insertion into printed circuit boards without soldering.
• Gold-plated mating contacts provide durable electrical connections for repeated engagement.

Headers, Male Pins Applications

• Board-to-board interconnects
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify that the target PCB pads are designed for press-fit technology rather than standard solder holes. Confirm the specific gold plating thickness requirements for the mating interface to ensure long-term reliability under operational conditions.

Headers, Male Pins Selection Notes

Select this component when a robust, non-soldered connection is required for high-reliability applications. Ensure the mating connector aligns with the 0.100 inch pitch and square contact shape specifications defined by the PHT series design.

Headers, Male Pins Part Context

This part belongs to the PHT series of terminal strips, which are characterized by their press-fit installation method. The series provides a secure mechanical bond between the connector and the substrate, suitable for environments where thermal cycling or vibration may compromise traditional solder joints.

Headers, Male Pins Replacement Considerations

PHT-107-01-L-S-004
