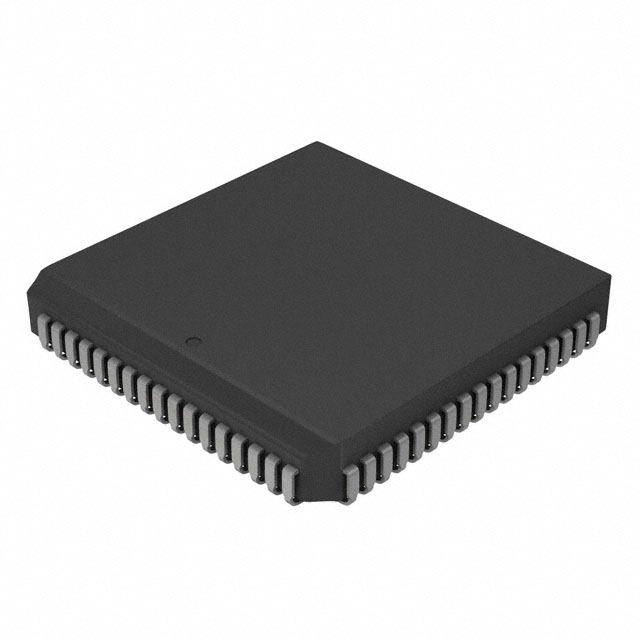

PIC18C801T-I/L

Microcontrollers Overview

The PIC18C801T-I/L is an 8-bit microcontroller from the PIC18C601/801 family, featuring a high-performance RISC CPU with up to 2 Mbytes of linear external program memory addressing and 1536 bytes of on-chip RAM. It supports operating frequencies from DC to 25 MHz and includes a 10-bit Analog-to-Digital Converter with 12 input channels. The device provides extensive I/O capabilities through Ports A-H and J, along with four timers, two CCP modules, and serial communication interfaces including MSSP and Addressable USART.

Microcontrollers Feature Summary

• Supports up to 2 Mbytes of external program memory addressing with flexible 8-bit or 16-bit external memory interface modes.
• Includes a 10-bit Analog-to-Digital Converter module with fast sampling rates and conversion capability during SLEEP mode.
• Features programmable Low Voltage Detection (LVD) and multiple reset sources including Power-on Reset and Watchdog Timer.
• Integrates Master Synchronous Serial Port (MSSP) supporting SPI and I2C protocols alongside an Addressable USART.

Microcontrollers Applications

• Applications requiring large external program memory expansion via the 80-pin TQFP package.
• Systems utilizing the 16-bit external memory interface for complex data processing tasks.
• Industrial control environments benefiting from the wide operating voltage range and industrial temperature specifications.

Microcontrollers Procurement Notes

Verify the specific ordering suffix 'I/L' against the manufacturer's current product identification system to confirm package type and temperature grade. Ensure compatibility with existing design constraints regarding the 84-pin PLCC footprint and moisture sensitivity levels before finalizing procurement decisions.

Microcontrollers Selection Notes

Select this component when designs require significant external address space up to 2 Mbytes combined with robust analog input handling via twelve ADC channels. Consider the availability of dedicated chip select signals and the 8x8 hardware multiplier for performance-intensive arithmetic operations within the 8-bit architecture.

Microcontrollers Part Context

This device belongs to the PIC18C601/801 series of high-performance ROM-less microcontrollers designed for applications needing extensive external memory interfacing. It shares architectural similarities with other PIC18 devices but distinguishes itself through its specific pinout configuration and support for both 8-bit and 16-bit external bus widths.

Microcontrollers Replacement Considerations

Consult Microchip documentation for verified migration paths from legacy PIC18 devices. No direct public substitute part numbers are confirmed in the provided source material; verify functional equivalence carefully if considering alternative components.
