PK-16N04P-06AQ

Overview

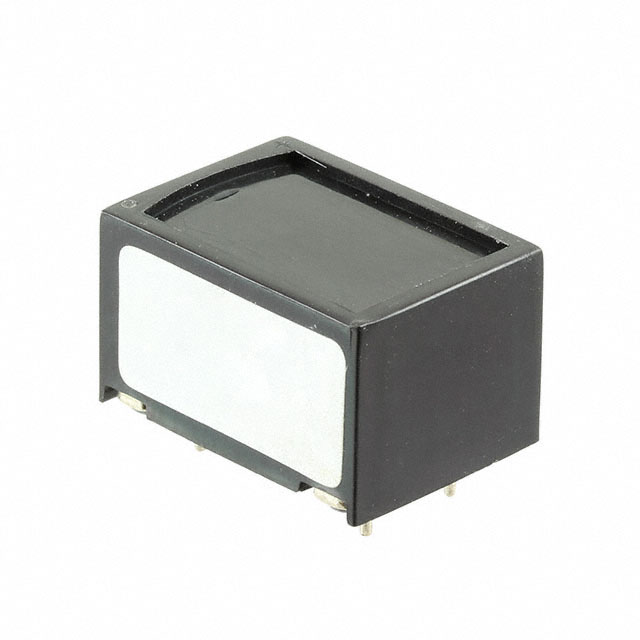

The PK-16N04P-06AQ is an internally driven magnetic buzzer manufactured by Mallory Sonalert Products Inc. It operates on a rated DC voltage of 6V with a current rating of 30mA. The device produces a continuous tone at a frequency of 400Hz and achieves a sound pressure level of 80dB measured at 6V and 30cm. Designed for through-hole mounting, it features PC pins for termination. The physical dimensions are approximately 23mm x 16.5mm.

Feature Summary

• Internally driven magnetic technology for direct connection
• Continuous single-tone audio output
• Through-hole PC pin termination for PCB integration

Applications

• Industrial control panel indicators
• Appliance status alerts
• Electronic equipment audio signaling

Procurement Notes

Verify the specific suffix '06AQ' to confirm the 6VDC rating and acoustic characteristics. Ensure the through-hole PC pin configuration matches the target PCB footprint. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number against official Mallory Sonalert documentation to avoid substitution errors.

Selection Notes

Select this component when a low-voltage, internally driven magnetic buzzer is required for through-hole assembly. The 400Hz frequency provides a distinct audible alert suitable for general purpose indication. Consider the 80dB SPL at close range for environments requiring moderate volume levels without excessive power consumption.

Part Context

This part belongs to the PK series of industrial buzzers from Mallory Sonalert. The series typically includes various voltage ratings and acoustic outputs. The PK-16N04P-06AQ specifically denotes the 6V variant within this family, distinguished by its magnetic transducer type and through-hole mounting style compared to piezoelectric or surface-mount alternatives.

Replacement Considerations

Check for equivalent parts in the same PK series with different voltage suffixes if system voltage differs. Verify mechanical compatibility with existing PCB layouts before substituting with other Mallory Sonalert models.
