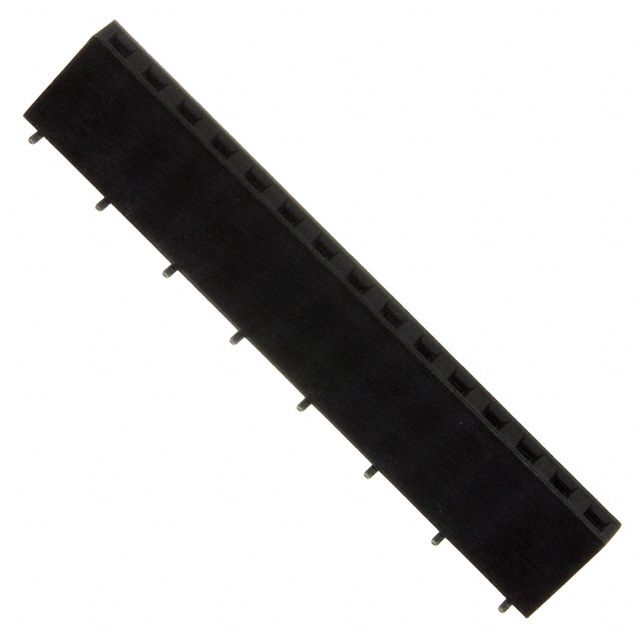

PPTC151KFXC

PPTC151KFXC is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HDR 15POS 0.1 TIN SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for PPTC151KFXC

• Description：CONN HDR 15POS 0.1 TIN SMD
• Series：-
• Mfr：Sullins Connector Solutions
• Package：Bulk
• Connector Type：Header, Top or Bottom Entry
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：15
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.280" (7.10mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A
• Voltage Rating：250V

Headers, Receptacles, Female Sockets datasheet and documents for PPTC151KFXC
