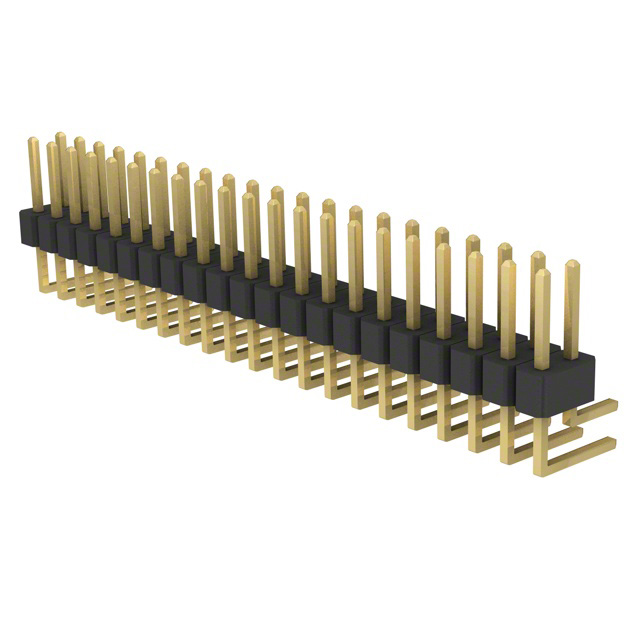

PRPC021DBAN-M71RC

PRPC021DBAN-M71RC is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Sullins Connector Solutions. Its product description is CONN HEADER R/A 42POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for PRPC021DBAN-M71RC

• Description：CONN HEADER R/A 42POS 2.54MM
• Series：-
• Mfr：Sullins Connector Solutions
• Package：Bulk
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：42
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：0.120" (3.05mm)
• Overall Contact Length：-
• Insulation Height：0.197" (5.00mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Gold
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT)
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for PRPC021DBAN-M71RC
