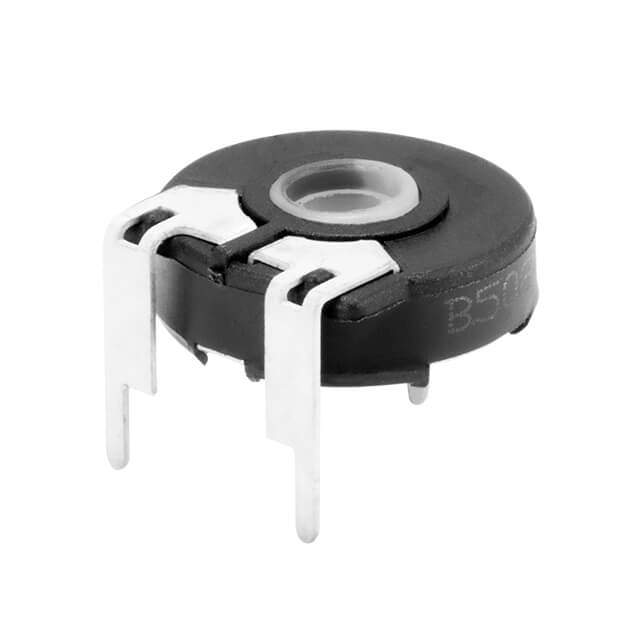

Trimmer Potentiometers PTN15-F05NB10 product image

PTN15-F05NB10

$0.79

Description：TRIMMER 5K OHM 0.2W PC PIN TOP
Series：PTN15
Mfr：Same Sky (Formerly CUI Devices)
Package：Bag

SKU:71f236204bb7 Category: Trimmer Potentiometers Brand: Same Sky (Formerly CUI Devices)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PTN15-F05NB10 is listed in the Trimmer Potentiometers range at ChipApex. The manufacturer field lists Same Sky (Formerly CUI Devices). Its product description is TRIMMER 5K OHM 0.2W PC PIN TOP. Review the specifications below when checking this part for your BOM.

Trimmer Potentiometers specifications for PTN15-F05NB10

Description：TRIMMER 5K OHM 0.2W PC PIN TOP
Series：PTN15
Mfr：Same Sky (Formerly CUI Devices)
Package：Bag
Resistance：5 kOhms
Power (Watts)：0.2W, 1/5W
Tolerance：±10%
Temperature Coefficient：-
Number of Turns：1
Adjustment Type：Top Adjustment
Resistive Material：Carbon
Mounting Type：Through Hole
Termination Style：PC Pins
Size / Dimension：Round - 0.591" Dia (15.00mm)

Trimmer Potentiometers datasheet and documents for PTN15-F05NB10

PTN15-F05NB10
