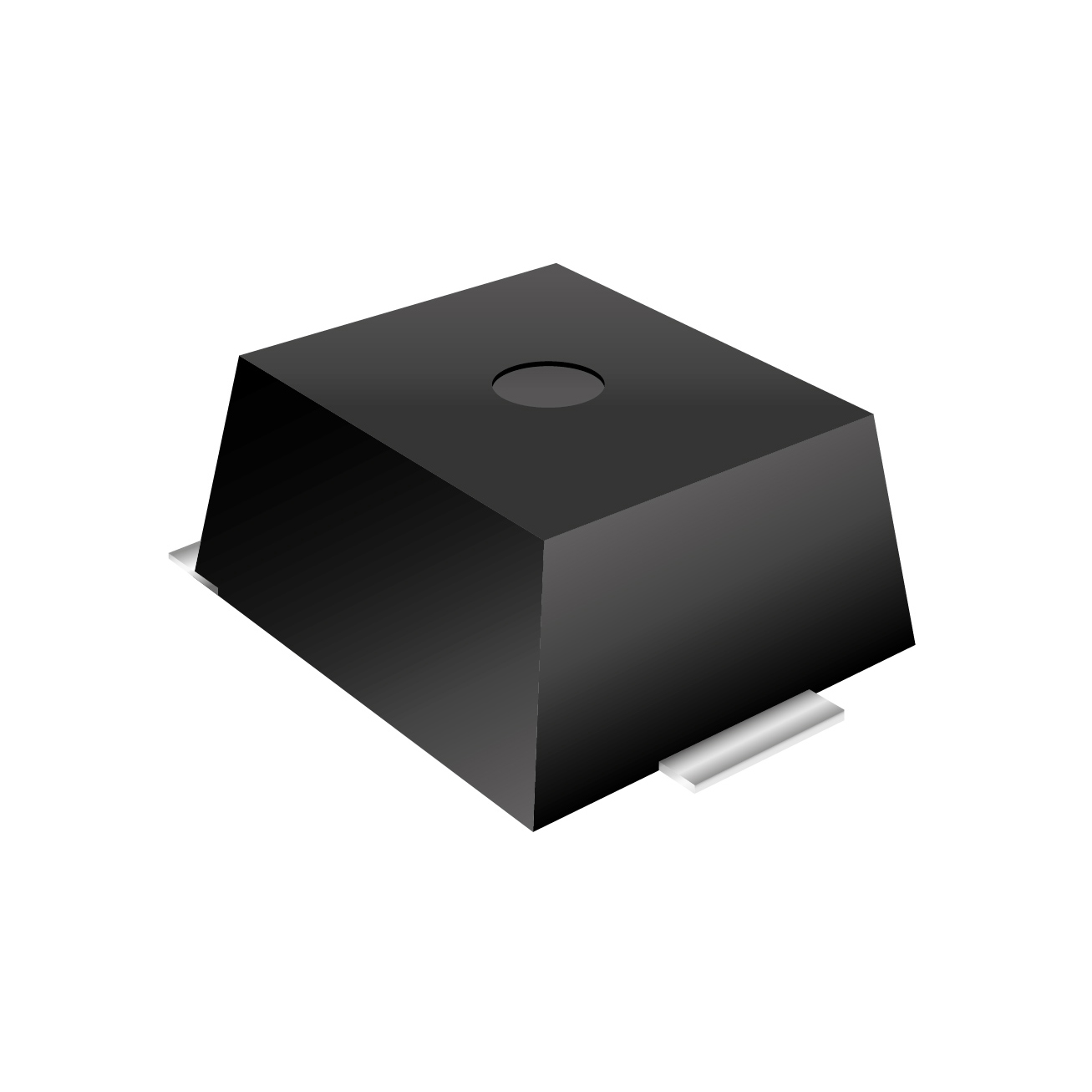

PTVS1-240C-M

PTVS1-240C-M is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is TVS DIODE 240VWM 295VC. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for PTVS1-240C-M

• Description：TVS DIODE 240VWM 295VC
• Series：PTVS
• Mfr：Bourns Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：240V
• Voltage - Breakdown (Min)：266V
• Voltage - Clamping (Max) @ Ipp：295V (Typ)
• Current - Peak Pulse (10/1000µs)：100A
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：950pF @ 10kHz
• Operating Temperature：-55°C ~ 125°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：2-SMD, Flat Leads
• Supplier Device Package：-
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for PTVS1-240C-M
