PZEUCJJANF-96.000000

Oscillators Overview

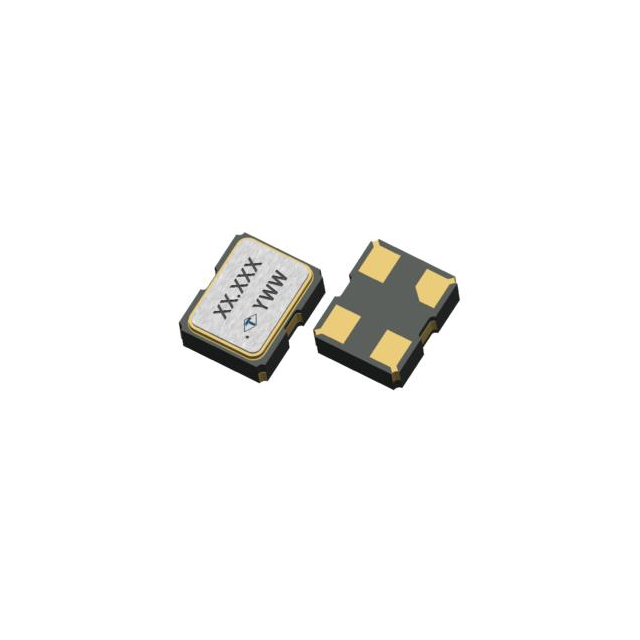

The Taitien PZEUCJJANF-96.000000 is a CMOS crystal oscillator (XO) operating at 96 MHz with ±20 ppm frequency stability. It functions within a 2.8V to 3.3V supply range, drawing a maximum current of 35mA during operation and 20mA in disable mode. The device features an enable/disable control function and utilizes a compact 4-SMD, no-lead package measuring 2.05mm x 1.65mm x 0.85mm. Designed for surface mount installation, it supports an industrial temperature range of -40°C to 105°C and complies with RoHS3 standards.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management
• Compact ultra-thin surface-mount package design
• Industrial-grade wide temperature operational capability

Oscillators Applications

• Embedded systems requiring precise timing signals
• Communication equipment interfaces
• Portable electronic devices with space constraints

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required voltage levels and frequency tolerances. Confirm that the selected variant matches the intended application's electrical specifications and environmental requirements. Cross-reference the manufacturer's official documentation to validate pin assignments and thermal characteristics before integration into the final product design.

Oscillators Selection Notes

Select this component when a small form factor and low power consumption are critical. Ensure the system voltage remains within the specified 2.8V to 3.3V range. Consider the ±20 ppm stability requirement against the system's clock accuracy needs. Verify that the CMOS output logic levels are compatible with the receiving circuitry inputs.

Oscillators Part Context

This oscillator belongs to the FASTXO series from Taitien, designed for high-frequency applications. It represents a standard XO type utilizing a quartz resonator as the basic frequency element. The part is currently active and available for production use, supporting modern electronics manufacturing processes through its leadless SMD packaging.

Oscillators Replacement Considerations

Consult the official PZ-U Type Numbering Guide for alternative frequencies or package sizes within the same series. Direct substitutes must match the 96 MHz frequency, CMOS output type, and 4-SMD footprint. Verify equivalent stability and voltage specifications before substitution.
