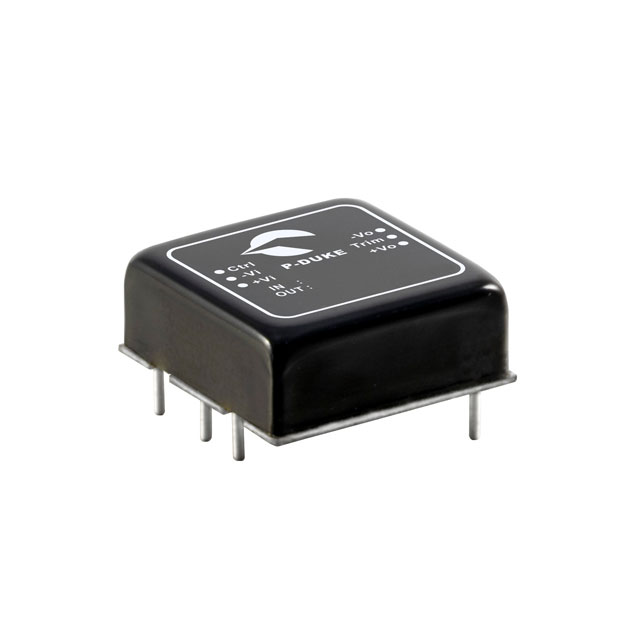

RCD20-48D12W

RCD20-48D12W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER +/-12V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RCD20-48D12W

• Description：DC DC CONVERTER +/-12V 20W
• Series：RCD20W (20W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：833mA, 833mA
• Power (Watts)：20 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial), Railway
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：62368-1

DC DC Converters datasheet and documents for RCD20-48D12W
