RD0106T-TL-H

Single Diodes Overview

The onsemi RD0106T-TL-H is a planar ultrafast rectifier featuring a repetitive peak reverse voltage of 600 V and an average output current rating of 1 A. It exhibits a maximum forward voltage of 1.3 V at 1 A and a typical reverse recovery time of 40 ns under specified conditions. The device operates within a junction temperature range of -55 °C to +150 °C and includes a thermal resistance from junction to case of 6 °C/W.

Single Diodes Feature Summary

• High breakdown voltage capability up to 600 V
• Fast reverse recovery characteristics for low switching noise
• Low forward voltage drop for improved efficiency
• Halogen-free material compliance

Single Diodes Applications

• General-purpose fast rectification in power supplies
• Freewheeling diodes in DC-DC converters
• Reverse polarity protection circuits
• Snubber circuits in switching applications

Single Diodes Procurement Notes

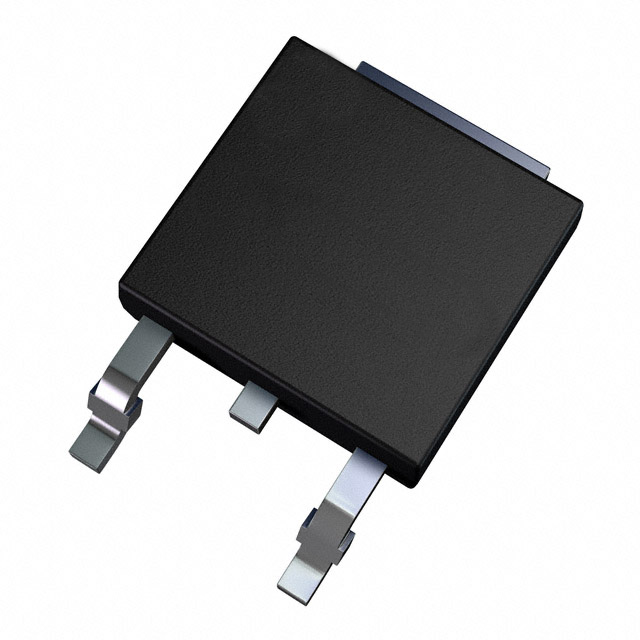

Verify the specific ordering suffix TL-H to confirm the TP-FA tape and reel packaging format containing 700 pieces per reel. Ensure compatibility with SC-63 (TO-252) land patterns during PCB layout. Confirm RoHS and halogen-free status requirements align with project specifications before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a 600 V blocking voltage and 1 A continuous current are required in a surface-mount TO-252 package. Consider the 40 ns reverse recovery time for high-frequency switching applications where low noise is critical. Evaluate the 6 °C/W thermal resistance against system heat dissipation capabilities to ensure reliable operation within the 150 °C junction limit.

Single Diodes Part Context

This part belongs to the RD0106T series of planar ultrafast rectifiers manufactured by onsemi. It utilizes advanced planar technology to achieve fast switching speeds and robust performance. The device is designed for general-purpose rectification applications requiring high reliability and low forward voltage characteristics in compact surface-mount packages.

Single Diodes Replacement Considerations

Direct substitutes must match the 600V/1A rating, TO-252 package, and ultrafast recovery characteristics. Verify pinout compatibility and thermal resistance values. Cross-reference with other manufacturers' ultrafast rectifiers offering similar trr and VF specifications.
