RDM-MBJ4-A-8116-1M-X-001

Antennas RF Overview

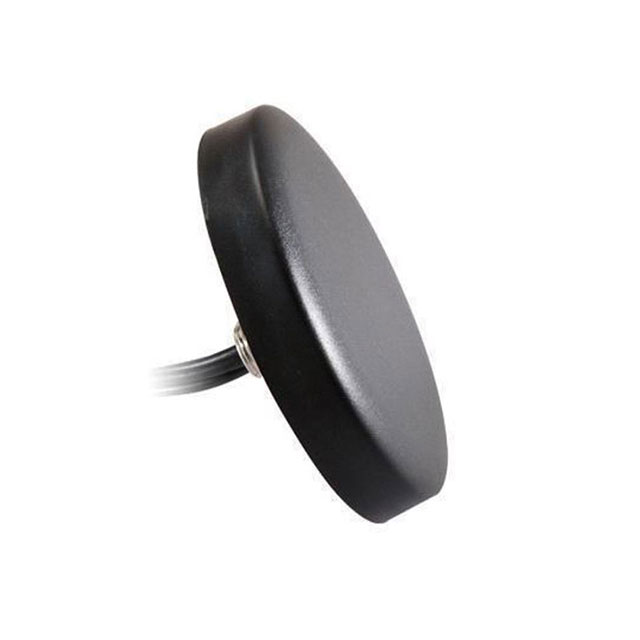

The RDM-MBJ4-A-8116-1M-X-001 is a GPS, LTE, and Wi-Fi combination antenna from the Raltron RDM series. It features an SMA male connector and RG174 cable with a maximum length of 10 meters. The radome is constructed from ABS material, ensuring durability for external use. Designed for harsh environments, it offers IP67 waterproofing and operates within a temperature range of -40°C to +85°C. The unit utilizes screw mounting methods and supports multiple satellite systems including GPS, GLONASS, Galileo, BeiDou, and Compass.

Antennas RF Feature Summary

• Supports multi-system satellite navigation including GPS, GLONASS, Galileo, BeiDou, and Compass
• Provides integrated connectivity for cellular LTE and Wi-Fi bands alongside GNSS signals
• Features IP67 waterproof rating and extended operating temperature range for rugged outdoor deployment

Antennas RF Applications

• Vehicle tracking and telematics in transportation fleets
• Remote monitoring and M2M communication in mining operations
• Asset management and logistics for autonomous or commercial vehicles

Antennas RF Procurement Notes

Verify that the specific model suffix matches the required frequency bands and connector type for your integration. Confirm the cable length availability aligns with system layout requirements. Ensure the SMA male interface is compatible with the receiving equipment's input port. Check environmental ratings against site conditions to confirm IP67 sufficiency. Validate mounting hardware compatibility for the intended installation surface.

Antennas RF Selection Notes

Select this component when simultaneous reception of GNSS, cellular, and Wi-Fi signals is required in a single housing. The wide operating temperature range suits extreme outdoor environments. The low cable loss design benefits long-distance runs up to 10 meters. Consider the self-grounding plane feature if installing on non-metallic surfaces. Verify that the puck form factor fits within spatial constraints of the target vehicle or structure.

Antennas RF Part Context

This part belongs to the Raltron RDM series of dome antennas designed for heavy-duty mobile and fixed applications. The series emphasizes environmental reinforcement for transport and remote monitoring sectors. These antennas are engineered to maintain performance across various mounting surfaces without requiring additional grounding planes. The product line targets industries demanding reliable signal acquisition in challenging operational conditions.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer channels for cross-reference data. Ensure any replacement maintains identical connector type, cable specifications, and frequency coverage. Verify that alternative models meet the same IP67 and temperature rating standards.
