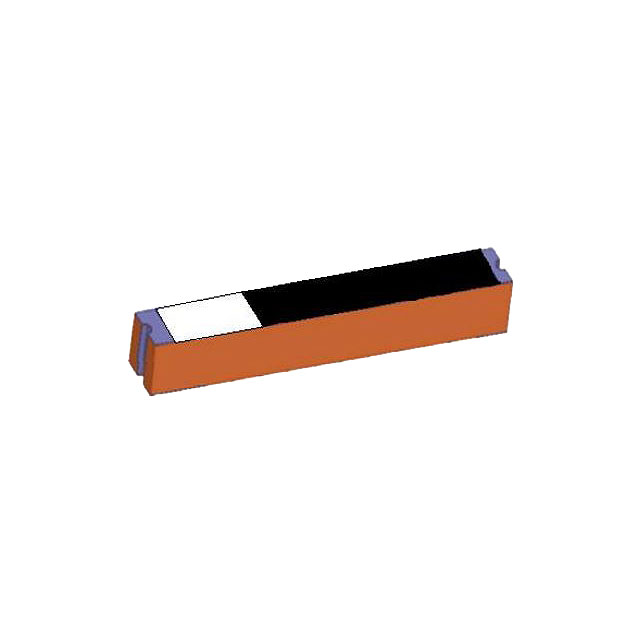

RGFRA8010110A2T

Antennas RF Overview

The RGFRA8010110A2T is a surface-mount RF antenna manufactured by Walsin Technology Corporation. Designed for the 2.4 GHz ISM band, this chip antenna supports Bluetooth and general ISM applications. It features a maximum frequency of 2.5 GHz with a bandwidth of 50 MHz and an impedance of 50 Ohms. The device provides a gain of 3.61 dBi and utilizes a solder surface mount construction for integration into compact electronic designs.

Antennas RF Feature Summary

• Optimized for 2.4 GHz ISM band operations including Bluetooth connectivity
• Surface mount construction suitable for automated assembly processes
• Impedance matched to 50 Ohms for standard RF transmission lines

Antennas RF Applications

• Bluetooth module integration
• ISM band wireless communication devices
• Compact consumer electronics requiring embedded antennas

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions against the target PCB layout before ordering. Confirm that the 50 Ohm impedance specification aligns with the system's RF trace requirements. Ensure the operating frequency range covers the intended application spectrum without interference.

Antennas RF Selection Notes

Select this component when a low-profile, surface-mount solution is required for 2.4 GHz ISM applications. Consider the 3.61 dBi gain and 50 MHz bandwidth relative to the system's range and data rate needs. Evaluate the physical footprint compatibility with the available board space and mounting constraints.

Antennas RF Part Context

This part belongs to Walsin Technology Corporation's portfolio of passive RF components. The company specializes in providing integrated solutions for mobile communications and networking. This antenna complements their broader range of MLCCs, resistors, and filters used in various industrial and consumer sectors.

Antennas RF Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided documentation. Verify electrical parameters such as gain, bandwidth, and impedance against potential alternatives to ensure functional equivalence.
