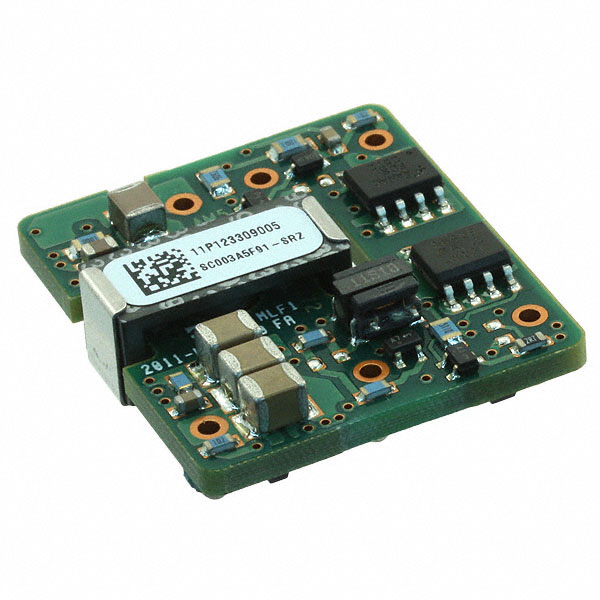

SC003A5F91-SRZ

SC003A5F91-SRZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 3.3V 12W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SC003A5F91-SRZ

• Description：DC DC CONVERTER 3.3V 12W
• Series：SC003
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：3.5A
• Power (Watts)：12 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：85.50%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for SC003A5F91-SRZ
