SLM N 1 117 3 Z

Headers, Male Pins Overview

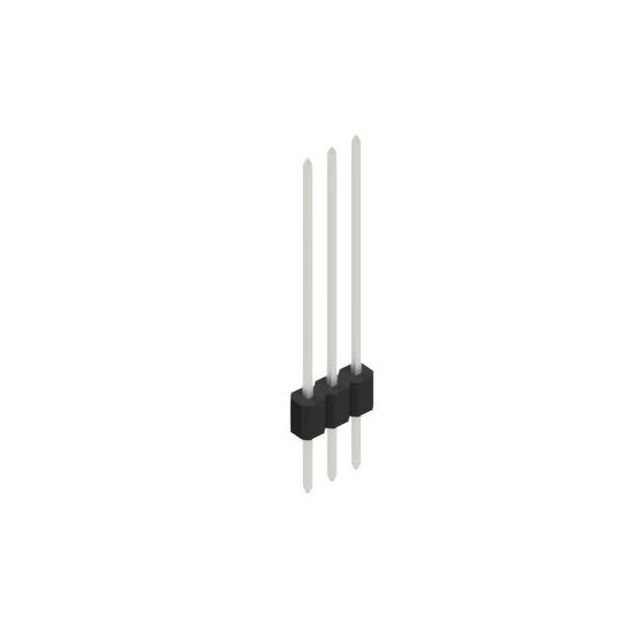

The SLM N 1 117 3 Z is a male pin header manufactured by Fischer Elektronik. It features a 1.27 mm pitch and contains three contacts arranged in a single row. The connector utilizes a through-hole straight mounting style with a narrow insulator body. The terminals are constructed from CuZn alloy and are gold-plated to ensure reliable electrical performance.

Headers, Male Pins Feature Summary

• Straight through-hole mounting configuration for PCB integration
• Narrow insulator design compatible with female BLM headers
• Gold-plated CuZn alloy terminals for conductivity

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the exact contact count matches the '3' designation in the model number. Confirm the 1.27 mm pitch requirement aligns with the target PCB footprint. Ensure the straight orientation fits the mechanical clearance constraints of the final assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, low-profile connection is required. The narrow insulator profile suits dense layouts. Verify compatibility with mating female headers from the same series. Check that the through-hole technology meets the manufacturing process capabilities.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLM N 1 117 series of male headers. The series offers various contact counts ranging from one to twenty positions. All variants share the 1.27 mm pitch and straight mounting characteristics. The specific suffix indicates the terminal quantity.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, single row, and three-contact configuration. Ensure the replacement maintains the straight through-hole form factor. Verify that the mating interface remains compatible with existing BLM series connectors.
