SLV W 2 130 56 Z

Headers, Male Pins Overview

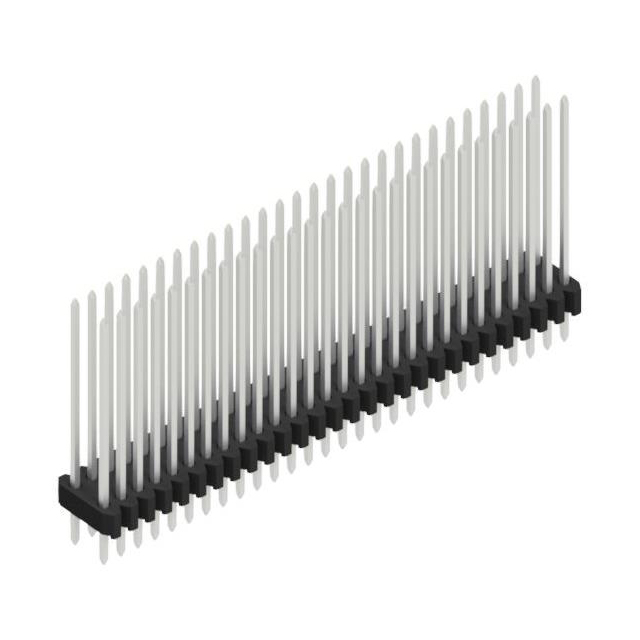

The SLV W 2 130 56 Z is a male pin header connector manufactured by Fischer Elektronik, designed for through-hole mounting on printed circuit boards. This component features a dual-row configuration with 56 positions and a precise pitch of 1.27 mm between contacts, alongside a row spacing of 2.54 mm. The housing is constructed from glass-filled polyamide (PA46), meeting UL94 V-0 flammability ratings, and operates within a temperature range of -40°C to 163°C. Contacts are made from CuZn alloy, providing reliable electrical connectivity for board-to-board or wire-to-board applications in industrial environments.

Headers, Male Pins Feature Summary

• Dual-row male pin header design with 56 positions for high-density connections
• Through-hole mounting technology ensuring secure PCB attachment
• Glass-filled polyamide insulation material offering thermal stability and flame resistance
• CuZn alloy contact construction for durable electrical performance

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Wire-to-board connections in electronic assemblies
• High-density signal routing in precision electronic equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Fischer Elektronik documentation to confirm exact physical dimensions and contact plating specifications. Ensure compatibility with mating female headers, such as the BLM series, before procurement. Cross-reference the part number with current datasheets to validate manufacturing revisions and availability status directly from authorized channels.

Headers, Male Pins Selection Notes

Select this component when a 56-position, two-row male header is required for through-hole assembly. The 1.27 mm pitch and 2.54 mm row spacing define the footprint requirements. Consider the operating temperature range and UL94 V-0 rating for environmental suitability. Confirm that the CuZn contact material meets the electrical load requirements of the specific application circuit.

Headers, Male Pins Part Context

This part belongs to the SLV W series of pin headers from Fischer Elektronik, characterized by precise pitch dimensions and robust construction. The series offers various pole counts and configurations tailored for different density needs. The SLV W 2 130 56 Z specifically addresses applications requiring a substantial number of contacts in a compact dual-row format, supporting standard industrial connector ecosystems.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm x 2.54 mm pitch, 56-position count, and dual-row through-hole form factor. Verify housing material properties and flammability ratings if environmental conditions differ. Mating compatibility with existing female connectors should be confirmed prior to substitution.
