SLY 2 104 54 S

Headers, Male Pins Overview

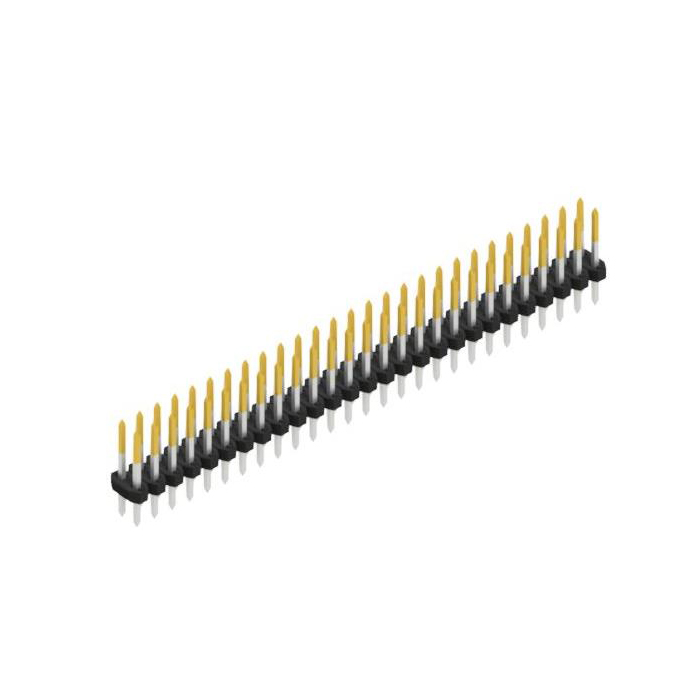

The SLY 2 104 54 S is a male pin header connector manufactured by Fischer Elektronik. It features a 54-position configuration arranged in two rows with a 2.00 mm pitch. The component utilizes a through-hole mounting method and has a standard row spacing of 2.00 mm. Physical dimensions include a length of 10.4 mm, a width of 3 mm, and a height of 5.9 mm. The contact plating specification indicates a tin finish.

Headers, Male Pins Feature Summary

• Two-row male pin header design for compact circuit board integration
• Through-hole mounting technology for secure mechanical attachment
• Standardized 2.00 mm grid spacing for consistent alignment

Headers, Male Pins Applications

• General electronic assembly requiring signal interconnection
• Industrial control panel wiring
• Embedded system prototyping

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official datasheets to confirm the exact plating material and surface finish requirements. Ensure that the 54-position count matches the target PCB footprint layout. Confirm that the through-hole pin diameter aligns with the manufacturing drill specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density two-row header is required within a limited vertical profile. The 2.00 mm pitch offers a balance between connection density and ease of manual soldering. Consider the physical height constraints of the enclosure to ensure adequate clearance above the printed circuit board surface during operation.

Headers, Male Pins Part Context

This part belongs to the SLY 2 series of male pin headers from Fischer Elektronik. The series provides various position counts while maintaining consistent 2.00 mm pitch and row spacing. These connectors are designed for reliable electrical connections in standard industrial and commercial electronics applications.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 54-position count, 2x27 arrangement, 2.00 mm pitch, and identical physical dimensions. Verify compatibility with existing PCB footprints and mating socket specifications before implementing any alternative components.
