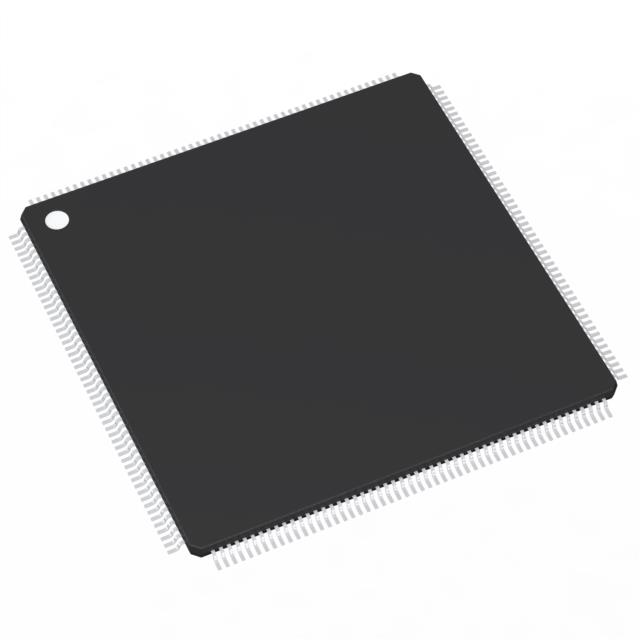

STM32F429BGT6

Microcontrollers Overview

The STM32F429BGT6 is a high-performance microcontroller based on the ARM Cortex-M4 core with FPU, operating at up to 180 MHz. It features 1 MB of Flash memory and 256 KB of SRAM in a 208-pin LQFP package. The device includes an ART Accelerator for zero-wait execution, Chrom-ART accelerator, LCD-TFT controller, and SDRAM interface. Connectivity options include Ethernet, USB OTG HS/FS, CAN, I2C, SPI, UART, and SAI. It supports 1.7 V to 3.6 V operation and offers extensive GPIOs and timers.

Microcontrollers Feature Summary

• High-performance ARM Cortex-M4 CPU with DSP instructions and single-precision FPU
• Integrated Chrom-ART accelerator and LCD-TFT controller for graphics processing
• Flexible External Memory Controller supporting SDRAM, PSRAM, and NAND/NOR flash
• Comprehensive connectivity suite including Ethernet MAC and USB OTG High-Speed

Microcontrollers Applications

• Industrial applications such as inverters and PLCs
• HVAC systems and video intercoms
• Motor drives and application control systems
• Medical devices and home audio equipment

Microcontrollers Procurement Notes

Verify the specific suffix 'BGT6' corresponds to the 208-pin LQFP package variant when ordering. Confirm that the required pin count matches your PCB layout, as this model differs from the 176-pin IGT6 version. Ensure compatibility with the 1.7 V to 3.6 V supply voltage range for your target application environment.

Microcontrollers Selection Notes

Select this model if your design requires the 208-pin form factor for additional peripheral access compared to smaller packages. The inclusion of the Ethernet MAC and SDRAM interface makes it suitable for complex graphical user interfaces. Consider the ART Accelerator benefits for code execution speed if performance optimization is critical.

Microcontrollers Part Context

This component belongs to the STM32F429xx high-performance advanced line within the STM32 family. It shares the same core architecture and many peripherals with the STM32F427xx series but typically offers higher memory capacities. The BGT6 designation specifically identifies the 208-pin LQFP packaging option for mass production.

Microcontrollers Replacement Considerations

STM32F429IGT6: Offers identical core functionality but utilizes a 176-pin LQFP package, requiring PCB redesign.

Microcontrollers FAQ

What is the maximum operating frequency of the STM32F429BGT6?

The device operates at a maximum frequency of 180 MHz.

Does this microcontroller support external SDRAM?

Yes, it includes a Flexible External Memory Controller (FMC) that supports SDRAM/LPSDR SDRAM interfaces.

Is there hardware acceleration for cryptographic functions?

While the STM32F429 series generally supports AES, Triple DES, and hash algorithms, specific hardware acceleration details should be verified against the official datasheet for this exact package.
