SX8725CWLTDT

Sensor And Detector Interfaces Overview

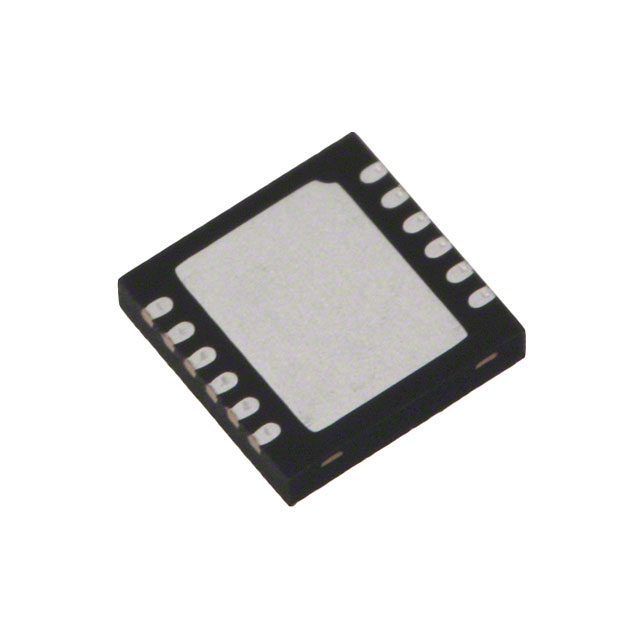

The SX8725CWLTDT is a single-channel data acquisition device from Semtech Corporation, designed for high-precision signal measurement in compact form factors. Measuring 4x4 mm, it integrates ZoomingADC technology to deliver enhanced accuracy within a small footprint suitable for sensor boards. The component features one differential input channel and operates with low power consumption. It supports I2C interface communication for configuration and data readout. The device is housed in a WLCSP package, facilitating integration into space-constrained electronic systems requiring precise analog-to-digital conversion capabilities.

Sensor And Detector Interfaces Feature Summary

• Integrates ZoomingADC functionality for high precision measurement
• Features a single differential input channel
• Compact 4x4 mm footprint suitable for sensor board integration
• Supports I2C digital interface for system control

Sensor And Detector Interfaces Applications

• Data acquisition systems requiring high precision
• Sensor boards with limited space constraints
• Industrial monitoring applications

Sensor And Detector Interfaces Procurement Notes

Verify the specific suffix CWLTDT against official Semtech documentation to confirm package type and tape-and-reel specifications. Ensure compatibility with existing I2C bus configurations in the target design. Check for any recent lifecycle status updates or recommended replacement notices directly from the manufacturer before finalizing procurement plans.

Sensor And Detector Interfaces Selection Notes

Select this component when a single-channel, high-precision ADC is required in a minimal footprint. The ZoomingADC technology offers advantages over standard SAR architectures for specific noise-sensitive applications. Evaluate the 4x4 mm size constraint against available PCB real estate. Confirm that the differential input requirement matches the sensor output type.

Sensor And Detector Interfaces Part Context

The SX8725 belongs to Semtech's data acquisition platform, which focuses on providing high-performance analog-to-digital conversion solutions in small packages. This series targets applications where board space is limited but measurement accuracy remains critical. The CWLTDT designation indicates a specific variant within this platform, likely defined by its packaging and reel configuration for surface-mount assembly.

Sensor And Detector Interfaces Replacement Considerations

Consult Semtech's official obsolescence notices for any direct replacements. No public substitute part numbers are confirmed in the provided source material. Verify if other members of the SX87xx series offer compatible pinouts or functionality if redesign is necessary.
