TAMP118

Antennas RF Overview

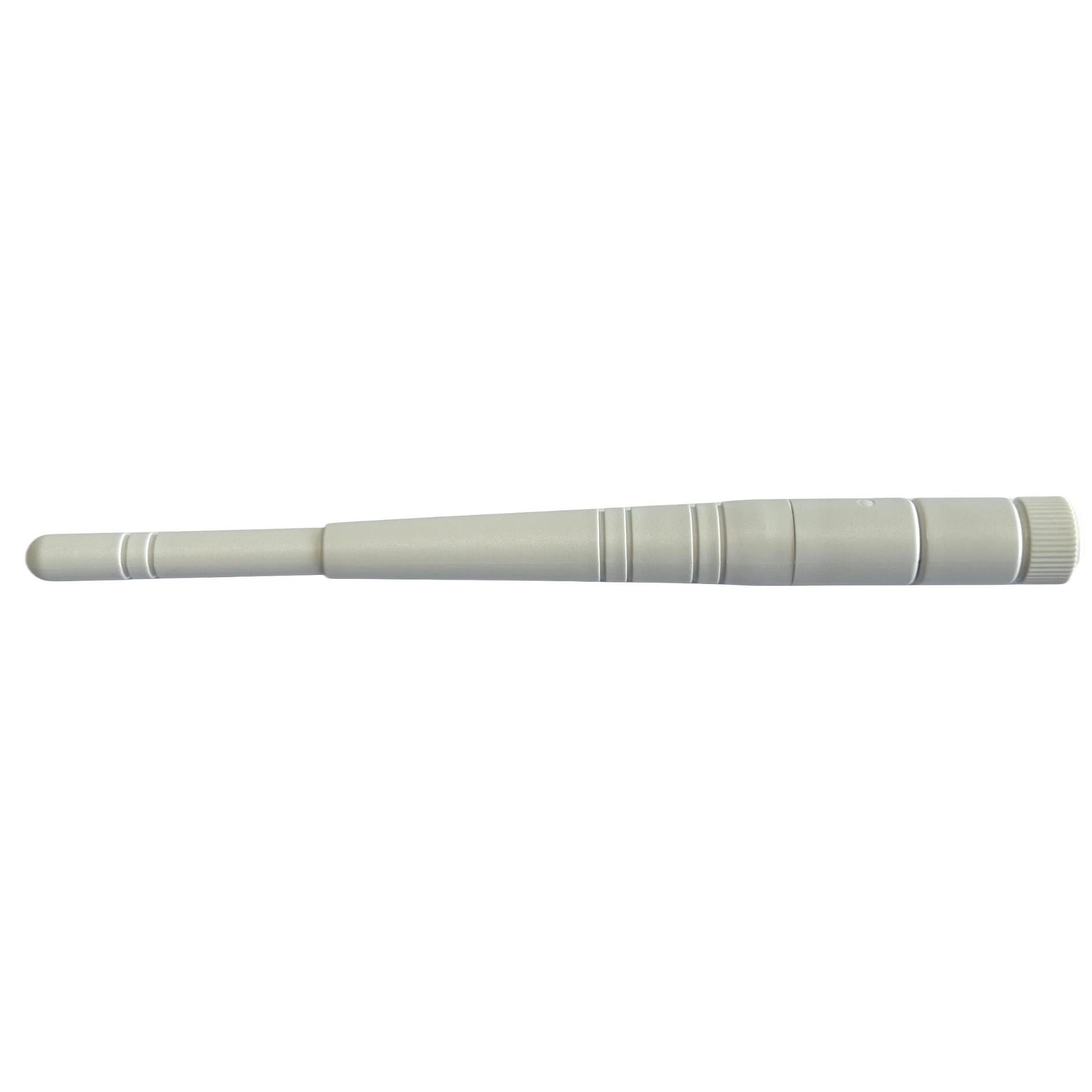

The SkyMirr TAMP118 is a Wi-Fi 6 external omnidirectional whip antenna designed for broadband wireless applications. It operates across three frequency bands: 2.4GHz to 2.5GHz, 5.1GHz to 5.9GHz, and 6GHz to 7GHz. The component features SMA male connector mounting and provides gains of 3.32dBi, 3.28dBi, and 2.78dBi respectively. With a maximum height of 156.40mm and IP54 ingress protection, it supports Wi-Fi standards in rugged environments.

Antennas RF Feature Summary

• Supports Wi-Fi 6e/7 dual-band operation with broad frequency coverage
• Features an omnidirectional radiation pattern for consistent signal distribution
• Includes IP54 rated housing for environmental durability
• Utilizes SMA male connector for secure interface attachment

Antennas RF Applications

• Wi-Fi 6 and Wi-Fi 6e routers
• Wireless communication gateways
• Customer Premises Equipment (CPE) devices
• Newer wireless communication equipment requiring external connectivity

Antennas RF Procurement Notes

Verify the manufacturer part number TAMP118 against official SkyMirr documentation to confirm specifications. Ensure compatibility with SMA male interfaces on target devices. Check RoHS3 compliance status if required by project regulations. Confirm that the IP54 rating meets environmental requirements for the intended installation location. Validate frequency band support against local regulatory constraints.

Antennas RF Selection Notes

Select this antenna when external high-gain connectivity is required for Wi-Fi 6 or newer standards. Consider the 156.40mm height constraint for physical integration. The IP54 rating makes it suitable for semi-outdoor or protected indoor installations. Verify that the host device supports the 6GHz to 7GHz band for full functionality. Ensure the SMA male connector matches the receiving port on the electronic system.

Antennas RF Part Context

The TAMP118 belongs to the SkyMirr TAMP product series, which focuses on ruggedized, high-efficiency embedded antenna components. This series utilizes proprietary MuLCAT technology to advance wireless connectivity solutions. The TAMP line typically includes various configurations for different wireless standards, positioning this model as a specialized solution for modern Wi-Fi applications.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult SkyMirr directly for alternative models within the TAMP series that match specific gain or frequency requirements.
