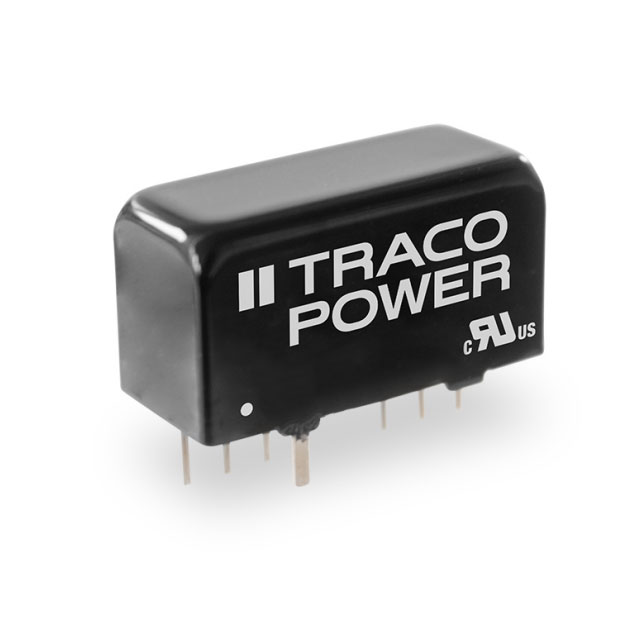

TMR 12-4822WI

TMR 12-4822WI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Traco Power. Its product description is ULTRA COMPACT 12 WATT DC/DC IN S. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for TMR 12-4822WI

• Description：ULTRA COMPACT 12 WATT DC/DC IN S
• Series：TMR 12WI (12W)
• Mfr：Traco Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 500mA
• Power (Watts)：12 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 105°C
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：8-SIP Module, 6 Leads
• Size / Dimension：0.87" L x 0.38" W x 0.47" H (22.0mm x 9.6mm x 12.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, cURus
• Standard Number：62368-1
