TSW-110-08-T-T-RA

Headers, Male Pins Overview

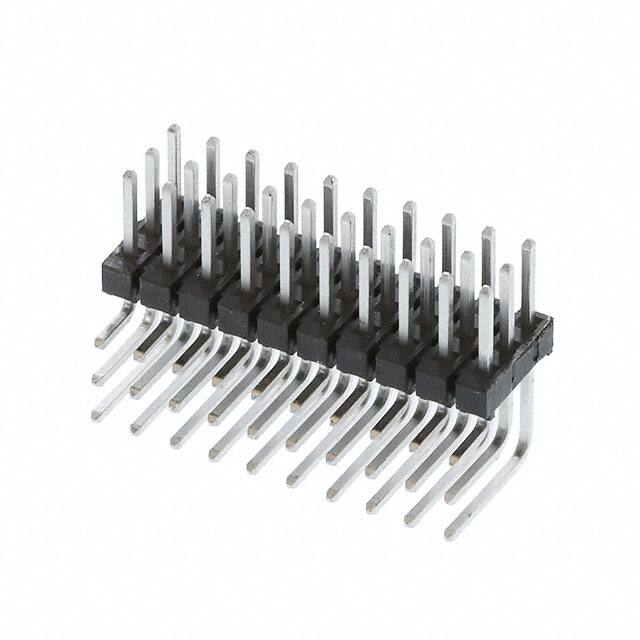

Samtec TSW-110-08-T-T-RA is a right-angle through-hole pin header from the TSW series. It features 30 positions with a 0.100" (2.54mm) pitch and two rows of contacts. The connector utilizes tin-plated phosphor bronze terminals and PBT insulation rated UL94 V-0. Designed for board-to-board or cable applications, it operates within a temperature range of -55°C to 105°C. The unshrouded design supports standard mating heights and offers flexible configuration options for classic interconnect needs.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting style for compact PCB integration
• Unshrouded header design compatible with standard mating connectors
• Tin-plated phosphor bronze contacts for reliable signal transmission
• PBT insulation material providing UL94 V-0 flame retardancy

Headers, Male Pins Applications

• Board-to-board interconnections in industrial equipment
• Cable-to-board connections in consumer electronics
• General-purpose circuit board stacking applications

Headers, Male Pins Procurement Notes

Verify the specific part number against official Samtec documentation to confirm terminal plating and row configuration. Ensure compatibility with mating connector housing dimensions and PCB hole patterns. Check RoHS compliance status and moisture sensitivity level requirements for your assembly process. Confirm that the right-angle orientation matches your mechanical layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54mm pitch right-angle header is required for low-cost, high-volume applications. The tin plating suits general environments without harsh corrosion exposure. Consider the unshrouded design for easy visual inspection of solder joints. Evaluate thermal management needs as the operating range extends to 105°C. Compare against similar TSW variants if different contact counts or plating materials are needed for enhanced performance.

Headers, Male Pins Part Context

The TSW series represents Samtec's classic line of through-hole square-post headers. These components are widely used in electronic assemblies requiring robust mechanical connections. The TSW-110-08-T-T-RA specifically denotes a 30-position, two-row variant with tin plating. This model belongs to a family offering extensive customization in pin count, termination style, and plating options to suit diverse engineering specifications.

Headers, Male Pins Replacement Considerations

TSW-110-08-L-T-RA: Offers gold plating instead of tin for improved corrosion resistance and conductivity. TSW-110-08-G-S-RA: Features single-row configuration with gold plating for different density requirements. Verify mechanical footprint and electrical ratings match before substitution.
