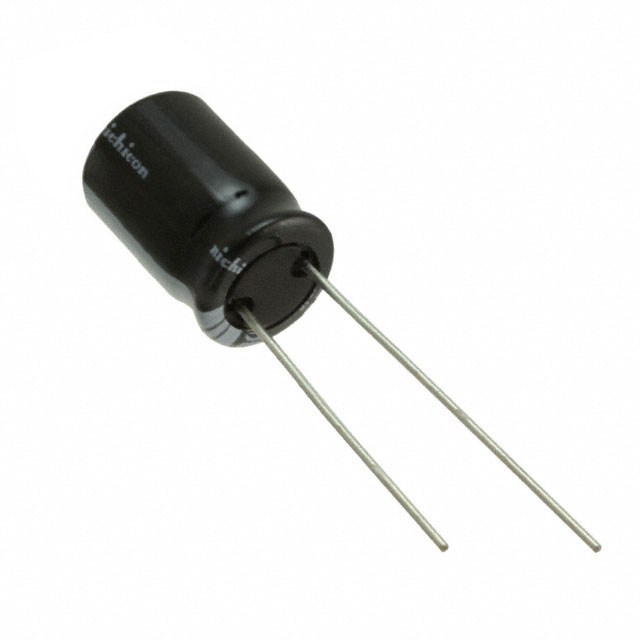

UHD1V330MDD1TD

UHD1V330MDD1TD is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 33UF 20% 35V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UHD1V330MDD1TD

• Description：CAP ALUM 33UF 20% 35V RADIAL TH
• Series：UHD
• Mfr：Nichicon
• Package：Tape & Box (TB)
• Capacitance：33 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：137.5 mA @ 120 Hz
• Ripple Current @ High Frequency：250 mA @ 100 kHz
• Lead Spacing：0.098" (2.50mm)
• Size / Dimension：0.197" Dia (5.00mm)
• Height - Seated (Max)：0.492" (12.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：300 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UHD1V330MDD1TD
