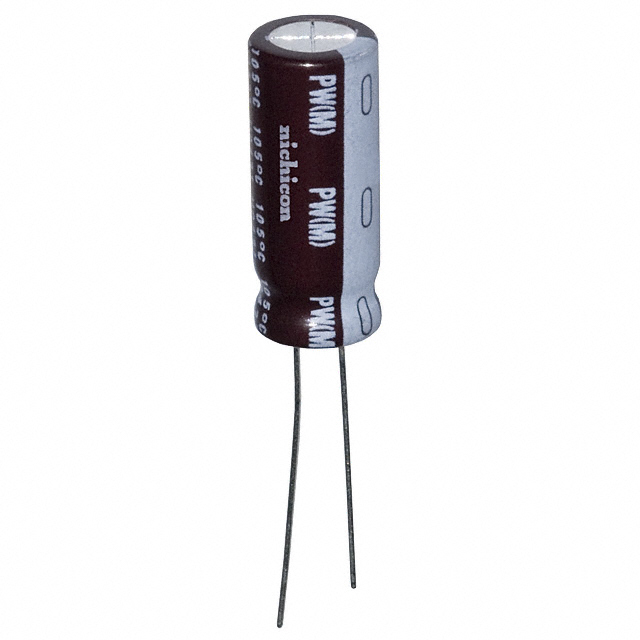

Aluminum Electrolytic Capacitors UPW1V561MPH product image

UPW1V561MPH

Description：CAP ALUM 560UF 20% 35V RADIAL TH
Series：UPW
Mfr：Nichicon
Package：Bulk

SKU:1cd8e75f748e Category: Aluminum Electrolytic Capacitors Brand: Nichicon

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

UPW1V561MPH is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM 560UF 20% 35V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for UPW1V561MPH

Description：CAP ALUM 560UF 20% 35V RADIAL TH
Series：UPW
Mfr：Nichicon
Package：Bulk
Capacitance：560 µF
Tolerance：±20%
Voltage - Rated：35 V
ESR (Equivalent Series Resistance)：-
Lifetime @ Temp.：5000 Hrs @ 105°C
Operating Temperature：-55°C ~ 105°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：1.08 A @ 120 Hz
Ripple Current @ High Frequency：1.44 A @ 100 kHz
Lead Spacing：0.197" (5.00mm)
Size / Dimension：0.394" Dia (10.00mm)
Height - Seated (Max)：0.984" (25.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can
Impedance：45 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for UPW1V561MPH

UPW1V561MPH
