VS-AZH3106FP-M3

Single Diodes Overview

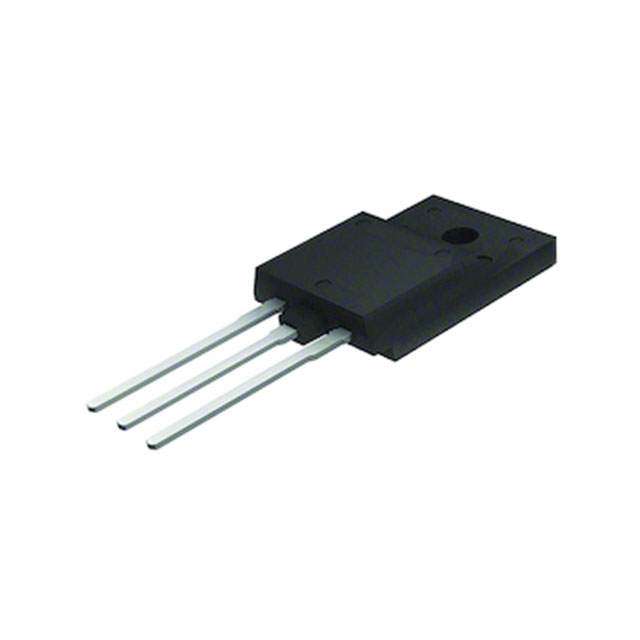

The VS-AZH3106FP-M3 is a hyperfast recovery rectifier from Vishay Semiconductors, utilizing FRED Pt® technology. It features a common anode configuration with two anodes and one cathode in a TO-3PF package. Key electrical parameters include a 600 V peak repetitive reverse voltage (VRRM) and a 30 A average rectified forward current (IF(AV)). The device exhibits a typical reverse recovery time of 22 ns at 25 °C and a maximum forward voltage drop of 2.15 V at 30 A. It operates within a junction temperature range of -55 °C to +175 °C.

Single Diodes Feature Summary

• Hyperfast soft recovery characteristics designed to minimize switching losses and over-dissipation in snubbers.
• Fully isolated package providing 2500 VRMS insulation voltage for enhanced safety.
• Platinum doped lifetime control ensures optimized performance, ruggedness, and reliability.
• Low leakage current and low forward voltage drop contribute to high efficiency.

Single Diodes Applications

• PFC boost stages in AC/DC sections of switch mode power supplies
• Inverters for air conditioning systems
• High-frequency welding equipment
• Uninterruptible Power Supplies (UPS)
• Motor drives

Single Diodes Procurement Notes

Verify the specific ordering suffix against official documentation to confirm compliance status. Ensure that the requested part number matches the exact package style and circuit configuration required for the design. Cross-reference thermal resistance values with actual mounting conditions to validate performance expectations under load.

Single Diodes Selection Notes

Select this component for applications requiring high-speed switching and robust thermal performance. The common anode configuration allows for efficient use in bridge or synchronous rectification topologies. Consider the TO-3PF package size and mounting torque requirements when designing the mechanical assembly and heatsinking strategy.

Single Diodes Part Context

This device belongs to the VS-AZH series of hyperfast rectifiers manufactured by Vishay Semiconductors. It is part of the FRED Pt® product line, which utilizes platinum doping to achieve superior recovery characteristics compared to standard fast recovery diodes. The series is designed for high-power industrial and commercial applications.

Single Diodes Replacement Considerations

Consult official Vishay substitution guides for verified alternatives. Generic replacements may not match the specific reverse recovery charge or isolation voltage requirements.

Single Diodes FAQ

What is the circuit configuration of the VS-AZH3106FP-M3?

It features a common anode configuration with two anodes and one cathode.

Does the VS-AZH3106FP-M3 have an isolated package?

Yes, it is a fully isolated package with an insulation voltage of 2500 VRMS.
