1-794620-2

Headers, Male Pins Overview

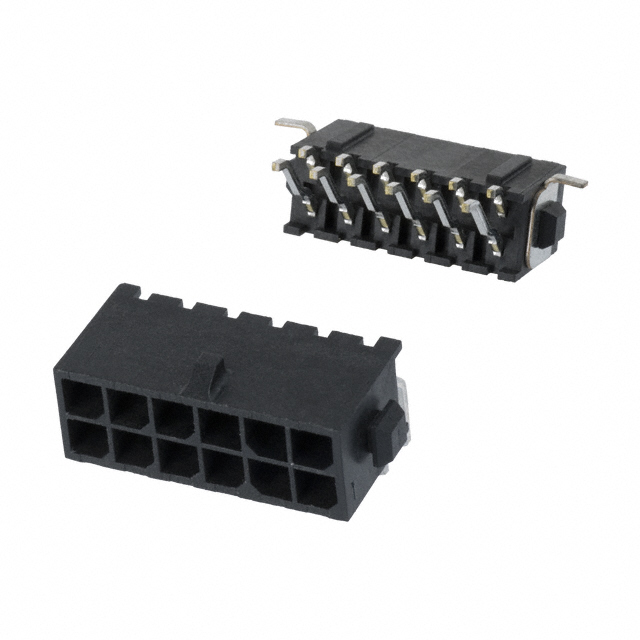

The TE Connectivity AMP Connectors part number 1-794620-2 is a rectangular connector header designed for through-hole mounting. It features a right-angle configuration with 12 positions and a pitch of 0.118 inches (3.00mm). This component belongs to the Micro MATE-N-LOK series, providing a reliable interconnection solution for printed circuit boards.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Through-hole termination ensures secure PCB attachment
• Micro MATE-N-LOK series reliability for multi-lead connections

Headers, Male Pins Applications

• Printed circuit board interconnections
• Electronic equipment wiring harnesses
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific pin count and orientation against the target schematic before ordering. Confirm that the through-hole footprint matches the PCB design requirements. Ensure compatibility with mating sockets from the same Micro MATE-N-LOK family to guarantee proper mechanical engagement and electrical continuity.

Headers, Male Pins Selection Notes

Choose this model when a right-angle, 12-position header is required for rigid PCB mounting. The 3.00mm pitch suits applications needing moderate density without excessive board space consumption. Consider the through-hole process capability of the assembly line, as surface-mount alternatives exist within the same series if reflow soldering is preferred.

Headers, Male Pins Part Context

This component is part of the extensive Micro MATE-N-LOK product line by TE Connectivity. The series is known for cost-effective grouping of multiple leads. The 1-794620-2 variant specifically addresses the need for angled entry points in dense electronic assemblies where vertical headers might interfere with adjacent components or enclosures.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 12-position right-angle headers from the Micro MATE-N-LOK family, such as 4-794620-2, provided the pitch and terminal type match. Always verify mechanical dimensions and contact plating specifications before substituting to ensure functional equivalence.
