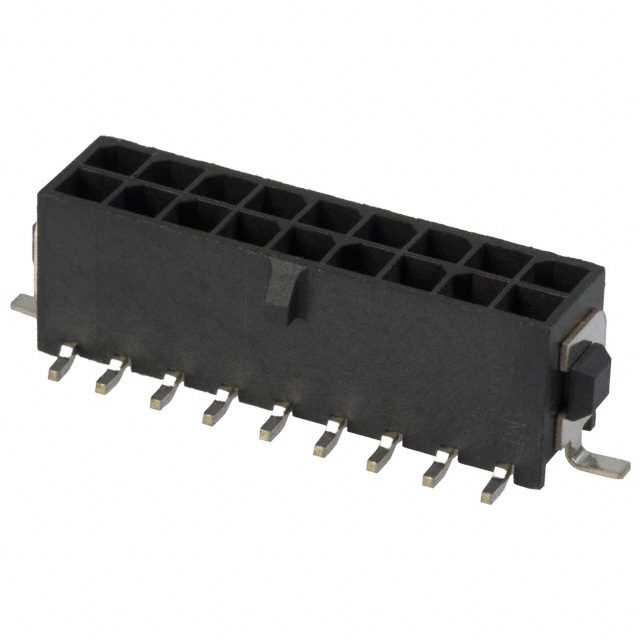

1-794636-8

$3.98

Description：CONN HEADER SMD 18POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:88de2d283082 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794636-8 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD 18POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794636-8

Description：CONN HEADER SMD 18POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：18
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.364" (9.25mm)
Contact Shape：Square
Contact Finish - Mating：Tin-Lead
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Solder Retention
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794636-8

1-794636-8

Headers, Male Pins Overview

TE Connectivity AMP Connectors part number 1-794636-8 is a Micro MATE-N-LOK series header connector designed for surface mount applications. It features an 18-position, dual-row configuration with a 3.00mm (0.118 inch) pitch. The housing is constructed from black polyamide (nylon) rated UL94 V-0. Contacts are made of brass with tin plating and utilize fixed tails for solder termination. The connector includes a four-wall shield design and employs pin lock slide fastening.

Headers, Male Pins Feature Summary

Surface mount installation with fixed solder tails
Four-wall shielded housing design
Pin lock slide fastening mechanism

Headers, Male Pins Applications

Board-to-cable or board-to-wire connections
General electronic equipment interconnects

Headers, Male Pins Procurement Notes

Verify the exact manufacturer part number against official TE Connectivity documentation to ensure compatibility with required surface mount processes. Confirm that the tin-plated brass contacts and fixed tail termination method align with specific assembly requirements. Check current product status and any relevant product change notifications before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a dual-row, surface mount header with shielding is required. Ensure the 3.00mm pitch and 18-position count match the PCB layout. Verify that the operating temperature range and UL94 V-0 rating meet environmental standards. Confirm that solder termination is preferred over crimping for the application.

Headers, Male Pins Part Context

This connector belongs to the Micro MATE-N-LOK family, known for reliable general-purpose interconnect solutions. It is manufactured by TE Connectivity AMP Connectors, a leading provider of electronic connectors and terminals. The series offers various configurations for diverse industrial and commercial applications.
