1-794679-0

Headers, Male Pins Overview

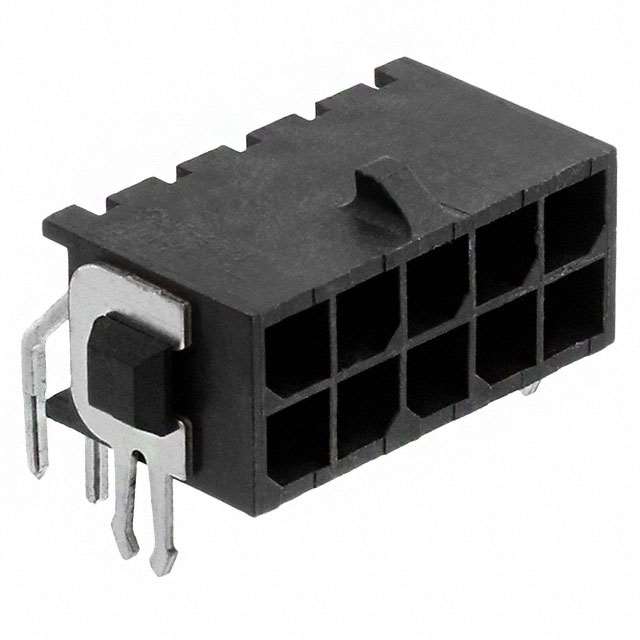

The 1-794679-0 is a rectangular header connector from the Micro MATE-N-LOK series by TE Connectivity AMP Connectors. It features a right-angle, through-hole mounting style with 10 positions and a 3mm (0.118 inch) pitch. The connector utilizes male pin contacts made of brass with gold or gold-palladium plating for mating surfaces. Designed for board-to-cable/wire applications, it includes board lock features and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Board lock mechanism ensures secure PCB attachment
• Gold or gold-palladium contact plating provides reliable conductivity

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-cable wiring systems
• Industrial equipment connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm exact contact plating specifications and packaging details. Ensure compatibility with mating receptacles from the same Micro MATE-N-LOK family. Confirm that the right-angle orientation meets mechanical clearance requirements on the target printed circuit board.

Headers, Male Pins Selection Notes

Select this component when a right-angle male header with board locking is required for high-reliability connections. Consider the 3mm pitch and current rating limitations based on wire gauge. Evaluate thermal management needs given the operating temperature range and material flammability ratings.

Headers, Male Pins Part Context

This part belongs to the Micro MATE-N-LOK series, known for robust performance in demanding environments. TE Connectivity AMP Connectors manufactures these components using high-quality thermoplastics and precision-formed contacts. The series supports various configurations for diverse industrial and commercial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes include other variants within the Micro MATE-N-LOK series with matching pin counts and pitch. Verify cross-compatibility with existing mating connectors before implementation.
