305-014-555-208

Edgeboard Connectors Overview

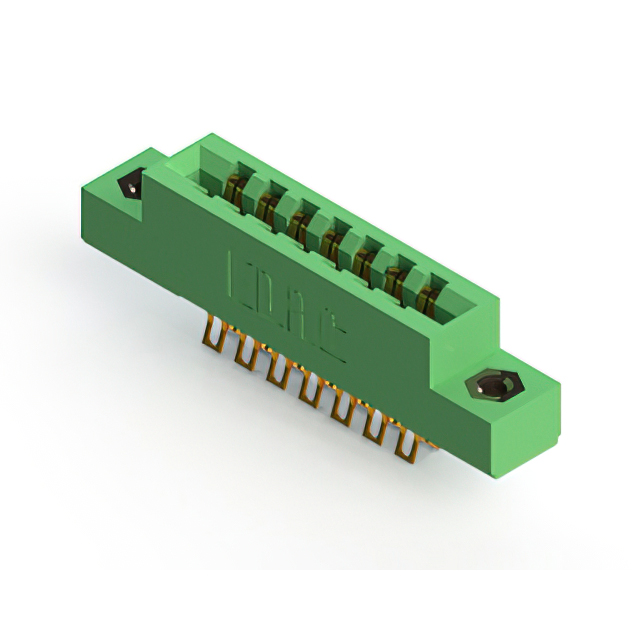

The EDAC Inc. 305-014-555-208 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 14 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) pitch and accommodates board thicknesses ranging from 1.37 mm to 1.78 mm. Constructed with copper alloy contacts and a thermoplastic polyester housing, it offers gold plating on the terminals. Rated for 5 A continuous current and 1800 VACrms insulation, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder lug termination
• Dual row female contact configuration for non-specified double-sided cards
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester housing providing structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized module connections
• Test and measurement devices needing high-reliability interconnects
• Automotive electronics modules demanding stable electrical performance

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact termination style and flange characteristics. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through manufacturer datasheets. Validate that the selected variant matches the required current and voltage ratings for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a vertical, panel-mount solution is required for double-sided card edge applications. The 3.96 mm pitch suits designs needing wider spacing between contacts. Verify that the target circuit board falls within the specified thickness tolerance range. Consider the 5 A current rating and operating temperature limits to ensure suitability for the operational environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts and mounting options for diverse electronic assembly needs. The 305-014-555-208 specifically addresses requirements for 14-position dual-row connections. It represents a standardized interface solution within the broader EDAC product portfolio.

Edgeboard Connectors Replacement Considerations

Cross-reference alternative parts only if they match the 14-position count, 3.96 mm pitch, and vertical panel mount configuration. Verify identical electrical ratings and mechanical dimensions before substitution. Consult official EDAC replacement guides for confirmed equivalent part numbers.
