305-072-555-212

Edgeboard Connectors Overview

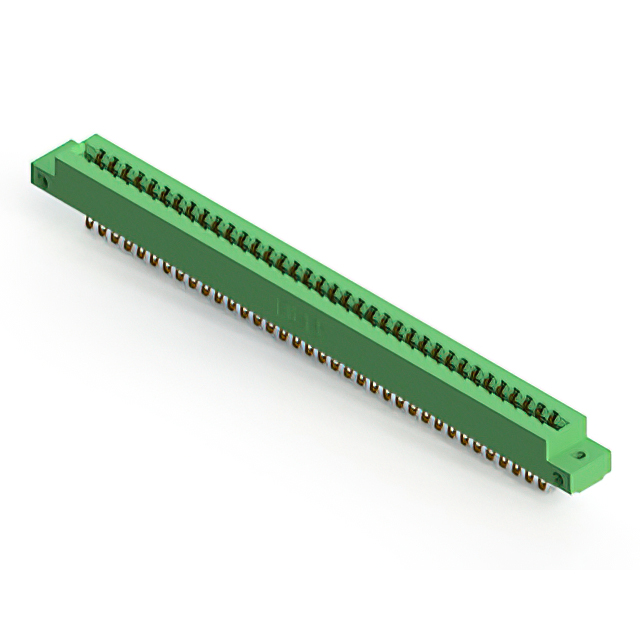

The EDAC Inc. 305-072-555-212 is a standard card edge connector receptacle from the 305 series, designed for PCB mounting. It features 72 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator body. It supports a continuous current rating of 5 A and offers an insulation resistance of 5 GOhms. The unit is intended for vertical installation on printed circuit boards.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density interconnect applications
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Thermoplastic polyester insulator body provides structural stability and electrical isolation

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics modules needing high-reliability connectors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm terminal type and plating thickness, as variations exist within the 305 series. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the receiving PCB accommodates the specified 3.96 mm pitch and nominal 1.57 mm board thickness for proper mechanical fit. Cross-reference the datasheet for environmental operating temperature ranges to validate suitability for the target application environment.

Edgeboard Connectors Selection Notes

Select this component when a 72-position dual-row interface is required for vertical PCB mounting. The 3.96 mm pitch is suitable for standard density applications. Consider the 5 A current rating and gold plating for durability. Compare against other 305 series variants if different row counts or termination styles are needed. Ensure the mating card edge thickness aligns with the connector's acceptance range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its .156 inch (3.96 mm) contact spacing and compatibility with various polarizing keys. The 305 series is widely used in industrial and commercial electronics for secure, high-cycle mating connections between circuit boards and backplanes.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cards before considering alternative sources.
